Web Browser

TMS FNC Core provides TTMSFNCWebBrowser, a framework-neutral web browser control that displays web pages, HTML content, and files such as PDFs. It supports navigation, JavaScript execution, screenshot capture, and a JavaScript bridge for application communication.

Add the appropriate unit to your uses clause:

web-browserPascalC++
uses
  FMX.TMSFNCWebBrowser;    // FMX
  VCL.TMSFNCWebBrowser;    // VCL
  WEBLib.TMSFNCWebBrowser;  // WEB Core (displays HTML; navigation not supported)

#include <FMX.TMSFNCWebBrowser.hpp>    // FMX

Key classes: TTMSFNCWebBrowser, TTMSFNCEdgeWebBrowser

Platform Setup

iOS and macOS

The browser uses WKWebView. Add the WebKit framework to your iOS/macOS SDK inside the IDE. See the TMS framework setup guide for instructions.

Android

No additional setup is required for basic functionality. If you encounter missing libraries during deployment, see the TMS Android JS guide.

Windows (Edge Chromium)

  1. Install Microsoft Edge if not already present (Windows 10 with auto-updates includes it).
  2. Copy WebView2Loader_x86.dll and WebView2Loader_x64.dll from the Edge Support folder in the TMS FNC Core source directory to System32 and SysWow64. These DLLs are also required during deployment.

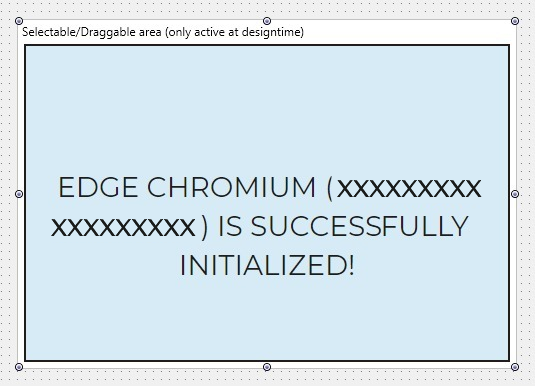

After setup, drop TTMSFNCWebBrowser on a form and the live Edge Chromium instance initializes at design time:

Web browser control at design time

Note

When creating TTMSFNCWebBrowser programmatically, set your OnInitialized event handler before setting the Parent property to ensure consistent behavior across platforms.

Pascal
TMSFNCWebBrowser1.URL := 'https://www.tmssoftware.com';
// or
TMSFNCWebBrowser1.Navigate('https://www.tmssoftware.com');

Loading HTML

Pascal
TMSFNCWebBrowser1.LoadHTML('<b>This is HTML!</b>');

Loading Files

Load PDF files, images, HTML files, and other supported types:

Pascal
TMSFNCWebBrowser1.LoadFile('MyPDF.pdf');

Executing JavaScript

Executing JavaScriptPascalC++
TMSFNCWebBrowser1.ExecuteJavascript(
  'function test(param){ return param + "_returned";} test("Hello");',
  procedure(const AValue: string)
  begin
    TTMSFNCUtils.Log(AValue);
  end
);

TMSFNCWebBrowser1->ExecuteJavaScript(
  "function test(param){ return param + \"_returned\";} test(\"Hello\");",
  [](const String AValue)
  {
    TTMSFNCUtils::Log(AValue);
  }
);
Web browser displaying loaded content

Capture Screenshot

Pascal
TMSFNCWebBrowser1.CaptureScreenshot;

Handle OnCaptureScreenshot to receive the result as a TTMSFNCBitmap.

JavaScript Bridge

Register a bridge object to enable communication between the browser page and your application:

JavaScript BridgePascalC++
type
  TMyBridgeObject = class(TInterfacedPersistent, ITMSFNCCustomWebBrowserBridge)
  private
    FObjectMessage: string;
    function GetObjectMessage: string;
    procedure SetObjectMessage(const Value: string);
  published
    property ObjectMessage: string read GetObjectMessage write SetObjectMessage;
  end;

class TMyBridgeObject : public TInterfacedPersistent, public ITMSFNCCustomWebBrowserBridge
{
private:
  String FObjectMessage;
  String __fastcall GetObjectMessage();
  void __fastcall SetObjectMessage(const String Value);
__published:
  __property String ObjectMessage = {read=GetObjectMessage, write=SetObjectMessage};
};
JavaScript BridgePascalC++
procedure TForm1.FormCreate(Sender: TObject);
const
  BridgeName = 'MyBridge';
var
  w: TTMSFNCWebBrowser;
  o: TMyBridgeObject;
  sHTML: string;
begin
  w := TTMSFNCWebBrowser.Create(Self);
  sHTML :=
    '<html><head><script>' +
    w.GetBridgeCommunicationLayer(BridgeName) +
    '</script></head><body>' +
    '<button onclick="send' + BridgeName + 'ObjectMessage(''Hello World!'');">Click</button>' +
    '</body></html>';
  w.Parent := Self;
  o := TMyBridgeObject.Create;
  w.AddBridge(BridgeName, o);
  w.LoadHTML(sHTML);
end;

void __fastcall TForm1::FormCreate(TObject *Sender)
{
  const String BridgeName = "MyBridge";
  TTMSFNCWebBrowser *w = new TTMSFNCWebBrowser(this);
  String sHTML =
    "<html><head><script>" +
    w->GetBridgeCommunicationLayer(BridgeName) +
    "</script></head><body>" +
    "<button onclick=\"send" + BridgeName + "ObjectMessage('Hello World!');\">Click</button>" +
    "</body></html>";
  w->Parent = this;
  TMyBridgeObject *o = new TMyBridgeObject();
  w->AddBridge(BridgeName, o);
  w->LoadHTML(sHTML);
}

ObjectMessage must remain published so internal RTTI can pick it up. Communication always uses string values.

Events

EventsPascalC++
procedure TForm1.TMSFNCWebBrowser1BeforeNavigate(Sender: TObject;
  var Params: TTMSFNCCustomWebBrowserBeforeNavigateParams);
begin
  Params.Cancel := Params.URL.Contains('tmsfnccore.asp');
end;

void __fastcall TForm1::TMSFNCWebBrowser1BeforeNavigate(TObject *Sender,
  TTMSFNCCustomWebBrowserBeforeNavigateParams &Params)
{
  Params.Cancel = Params.URL.Pos("tmsfnccore.asp") > 0;
}

OnBeforeNavigate lets you inspect and cancel navigations. OnNavigateComplete fires when navigation finishes.

TTMSFNCEdgeWebBrowser

TTMSFNCEdgeWebBrowser extends TTMSFNCWebBrowser with Windows Edge-specific features. Platform setup is identical to TTMSFNCWebBrowser.

Note

Currently requires WebView2 version 1.0.1587 or compatible.

Context Menu

By default, the browser shows its native context menu. You can replace or customize it:

  • Assign a TPopupMenu to the PopupMenu property to replace the native menu with a framework menu.
  • Enable Settings.UsePopupMenuAsContextMenu to render the assigned TPopupMenu as a native context menu.
  • Handle OnGetContextMenu to add, remove, or modify individual items.

Only custom context menu items (TTMSFNCWebBrowserCustomContextMenuItem) can have click detection.

Context MenuPascalC++
procedure TForm1.EdgeWebBrowserGetContextMenu(Sender: TObject;
  ATarget: TTMSFNCWebBrowserTargetItem;
  AContextMenu: TObjectList<TTMSFNCWebBrowserContextMenuItem>);
var
  mi: TTMSFNCWebBrowserCustomContextMenuItem;
begin
  mi := TTMSFNCWebBrowserCustomContextMenuItem.Create;
  mi.Name := 'Go to TMS';
  AContextMenu.Insert(0, mi);
end;

void __fastcall TForm1::EdgeWebBrowserGetContextMenu(TObject *Sender,
  TTMSFNCWebBrowserTargetItem *ATarget,
  TObjectList__1<TTMSFNCWebBrowserContextMenuItem*> *AContextMenu)
{
  TTMSFNCWebBrowserCustomContextMenuItem *mi = new TTMSFNCWebBrowserCustomContextMenuItem();
  mi->Name = "Go to TMS";
  AContextMenu->Insert(0, mi);
}

Chrome DevTools Protocol

Call CallDevToolsProtocolMethod to invoke DevTools API methods and receive the JSON response in OnDevToolsMethodCompleted. Subscribe to events with SubscribeDevtools; results arrive via OnDevToolsSubscribedEvent. Console log events are pre-parsed into OnGetConsoleMessage.

Additional Properties

Property Description
Settings.AdditionalBrowserParameters Startup parameters passed to WebView2
Settings.AllowExternalDrop Allow dropping external files (default: True)
Settings.EnableAcceleratorKeys Enable browser-specific accelerator keys
Settings.EnableContextMenu Show/hide the context menu
Settings.EnableShowDebugConsole Enable the debug console
Settings.Language Browser localization

Additional Methods

Method Description
GetCookies(AURI) Returns cookies for the URI
AddCookie(ACookie) Adds or updates a cookie
DeleteAllCookies Deletes all cookies under the profile
Print(APrintSettings) Prints the current page asynchronously
PrintToPDF(AFileName, APrintSettings) Exports the current page to PDF
NavigateWithData(AURI, AMethod, ABody, AHeaders) Navigates with custom HTTP method and body
OpenTaskManager Opens the browser Task Manager

Download Events

Event Description
OnDownloadStarted Fires when a download starts; set result path, silent/pause/cancel
OnDownloadStateChanged Fires when download state changes
OnDownloadBytesReceivedChanged Periodic progress update
