Time Ranges and Selection

TTMSFNCDigitalTimePicker uses TTMSFNCDigitalTimeSelector as its drop-down content. The picker generates selectable time values from StartTime, EndTime, TimeInterval, and IntervalUnit.

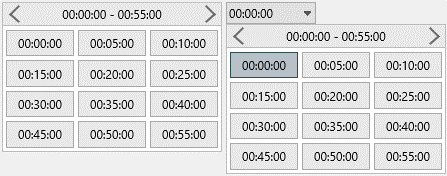

Digital time picker drop-down

Configure Time Values

Set the time range and interval before the picker opens. Use TimeFormat to control how each generated value is shown.

TMSFNCDigitalTimePicker1.StartTime := EncodeTime(8, 0, 0, 0);
TMSFNCDigitalTimePicker1.EndTime := EncodeTime(18, 0, 0, 0);
TMSFNCDigitalTimePicker1.IntervalUnit := tsuMinutes;
TMSFNCDigitalTimePicker1.TimeInterval := 15;
TMSFNCDigitalTimePicker1.TimeFormat := 'hh:nn';
TMSFNCDigitalTimePicker1.SelectedTime := EncodeTime(9, 30, 0, 0);
TMSFNCDigitalTimePicker1.OnTimeSelected := TMSFNCDigitalTimePicker1TimeSelected;

Handle Selection

Handle OnTimeSelected when the selected time should update another control or stored setting. The event passes the chosen TTime value.

procedure TForm1.TMSFNCDigitalTimePicker1TimeSelected(Sender: TObject; ATime: TTime);
begin
  Caption := FormatDateTime('hh:nn', ATime);
end;

Use the Selector Directly

Use TTMSFNCDigitalTimeSelector directly when the time list should stay visible instead of living in a drop-down editor.

TMSFNCDigitalTimeSelector1.StartTime := EncodeTime(8, 0, 0, 0);
TMSFNCDigitalTimeSelector1.EndTime := EncodeTime(12, 0, 0, 0);
TMSFNCDigitalTimeSelector1.IntervalUnit := tsuMinutes;
TMSFNCDigitalTimeSelector1.TimeInterval := 30;
TMSFNCDigitalTimeSelector1.TimeFormat := 'hh:nn';
TMSFNCDigitalTimeSelector1.SelectedTime := EncodeTime(10, 0, 0, 0);

Allow a Blank Value and Clear It

SelectedTime is a TTime, so there is no separate "no value" state at the type level — midnight (00:00:00) doubles as the sentinel for "nothing selected". AllowNumericNullValue (default True) controls how that sentinel is displayed: whenever the picker's time value has no fractional (time-of-day) part left, i.e. it equals midnight, the edit field shows an empty string instead of a formatted 00:00:00. Set AllowNumericNullValue := False when midnight is a legitimate time value that should always be shown as text.

Call Clear to reset the picker to that blank state programmatically, for example when wiring up a "Clear" button. Clear sets SelectedTime := 0.0, which — together with AllowNumericNullValue := True — blanks the edit field; it does not change AllowNumericNullValue itself, and it does not affect the time slots already generated for the drop-down.

procedure TForm1.ConfigureBlankableTimePicker;
begin
  TMSFNCDigitalTimePicker1.AllowNumericNullValue := True;
  TMSFNCDigitalTimePicker1.SelectedTime := EncodeTime(9, 30, 0, 0);
end;

procedure TForm1.ButtonClearClick(Sender: TObject);
begin
  TMSFNCDigitalTimePicker1.Clear;
end;

Combining time configuration, selection handling, and a visible selector

Configure a picker and a selector together so both controls share the same time range and stay in sync when a value is chosen:

procedure TForm1.FormCreate(Sender: TObject);
begin
  TMSFNCDigitalTimePicker1.StartTime    := EncodeTime(8, 0, 0, 0);
  TMSFNCDigitalTimePicker1.EndTime      := EncodeTime(18, 0, 0, 0);
  TMSFNCDigitalTimePicker1.TimeInterval := 30;
  TMSFNCDigitalTimePicker1.TimeFormat   := 'hh:nn';

  TMSFNCDigitalTimeSelector1.StartTime    := TMSFNCDigitalTimePicker1.StartTime;
  TMSFNCDigitalTimeSelector1.EndTime      := TMSFNCDigitalTimePicker1.EndTime;
  TMSFNCDigitalTimeSelector1.TimeInterval := 30;
  TMSFNCDigitalTimeSelector1.TimeFormat   := 'hh:nn';
end;

procedure TForm1.TMSFNCDigitalTimePicker1TimeSelected(Sender: TObject; ATime: TTime);
begin
  TMSFNCDigitalTimeSelector1.SelectedTime := ATime;
end;

High-DPI Displays

The picker and its time selector express their sizes in design pixels measured at 96 DPI and rescale them when the host form moves to a monitor with a different DPI: the picker's Font, DropDownWidth and DropDownHeight, and the selector's HeaderSize together with Appearance.VerticalSpacing, Appearance.HorizontalSpacing and Appearance.Font. Author each of those as its unscaled design value; pre-multiplying by the current scale factor double-scales the drop-down.

Rows, Columns, TimeInterval and IntervalUnit are counts and durations rather than pixels, so they are DPI-independent by construction. That makes them the sturdier way to shape the drop-down: fix the grid, and let the scaled item metrics decide how many pixels it occupies on the current display.

{ Call this from your form's OnCreate: }
procedure TForm1.ConfigureDigitalTimeMetrics;
begin
  TMSFNCDigitalTimePicker1.BeginUpdate;
  try
    // Design pixels measured at 96 DPI. The picker rescales its Font,
    // DropDownWidth and DropDownHeight, and the time selector inside the
    // drop-down rescales HeaderSize plus the appearance spacings, so none of
    // these may be pre-multiplied by the current scale factor.
    TMSFNCDigitalTimePicker1.Font.Size := 12;
    TMSFNCDigitalTimePicker1.HeaderSize := 24;
    TMSFNCDigitalTimePicker1.Appearance.VerticalSpacing := 2;
    TMSFNCDigitalTimePicker1.Appearance.HorizontalSpacing := 2;

    // Rows and Columns are counts, not pixels, so they are DPI-independent by
    // construction. Prefer shaping the drop-down through the grid and let the
    // scaled item metrics decide the pixel size.
    TMSFNCDigitalTimePicker1.Rows := 4;
    TMSFNCDigitalTimePicker1.Columns := 3;
    TMSFNCDigitalTimePicker1.TimeInterval := 15;
  finally
    TMSFNCDigitalTimePicker1.EndUpdate;
  end;
end;
