Fonts, CSS, and display modes

Beyond the standard editing surface, the editor lets you tailor the fonts it offers, the unit those font sizes use, the CSS applied inside the editing frame, and several behavioral modes. Reach for this chapter when you want the editor to match your application's typography and branding, or to switch it into a read-only viewer.

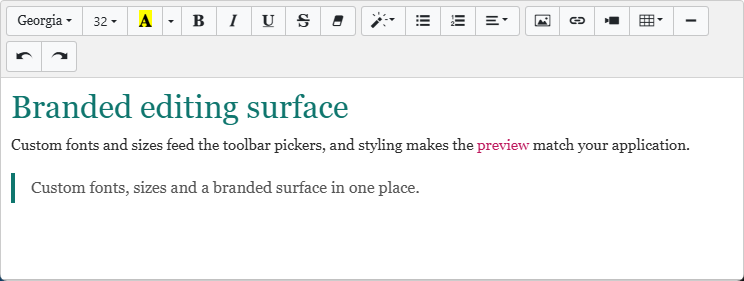

A TTMSFNCWXHTMLMemo with a branded editing surface — a serif base font, a teal heading and an accent-coloured link — produced by custom fonts, the font-size unit and injected CSS.

Custom fonts and font sizes

CustomFonts and CustomFontSizes are both TStrings. Anything you add to them appears in the toolbar's font-name and font-size pickers, on top of the editor's built-in list. Use them to surface the corporate fonts your documents actually use rather than the generic defaults.

The font-size unit

FontSizeUnit is a TTMSFNCWXHTMLMemoFontSizeUnit and controls how sizes are interpreted, both in the toolbar and in SetFontSize:

Value	Meaning
`mfuDefault`	The editor's default unit.
`mfuPx`	Font sizes are expressed in pixels.
`mfuPt`	Font sizes are expressed in points.

Injecting CSS

CustomCSS is a string of CSS rules injected into the editor frame. Use it to set a base font, paragraph spacing, link color, or any other styling of the editing surface, so the in-editor preview matches how the content will eventually be rendered.

Behavioral modes

Property	Default	Effect
`ReadOnly`	`False`	When `True`, the content is shown for viewing only and cannot be edited — turning the editor into an HTML viewer.
`SpellCheck`	`True`	Enables the browser's spell-checking inside the editing area.
`AllowDrop`	`True`	Allows content to be dropped into the editor from an external source.

Combining a branded look with a read-only viewer

A common combination is to inject CustomCSS for a branded surface and set ReadOnly := True to present finished content as a styled, non-editable preview — for example showing a generated invoice or article exactly as it will look, without letting the user change it. The snippet below applies custom fonts and sizes, the font-size unit, branded CSS, and the display modes together, batched between BeginUpdate and EndUpdate so the editor frame rebuilds only once:

procedure TForm1.ConfigureAppearance;
begin
  TMSFNCWXHTMLMemo1.BeginUpdate;
  try
    { Add font families to the toolbar font picker. }
    TMSFNCWXHTMLMemo1.CustomFonts.Add('Inter');
    TMSFNCWXHTMLMemo1.CustomFonts.Add('Roboto Mono');

    { Add sizes to the font-size picker and choose the unit they are expressed in. }
    TMSFNCWXHTMLMemo1.CustomFontSizes.Add('10');
    TMSFNCWXHTMLMemo1.CustomFontSizes.Add('12');
    TMSFNCWXHTMLMemo1.CustomFontSizes.Add('14');
    TMSFNCWXHTMLMemo1.FontSizeUnit := mfuPt;

    { Inject CSS into the editor frame to brand the editing surface. }
    TMSFNCWXHTMLMemo1.CustomCSS :=
      'body { font-family: Inter, Arial, sans-serif; font-size: 14px; }' +
      'p { margin: 0.5em 0; }';

    { Display options. }
    TMSFNCWXHTMLMemo1.SpellCheck := True;
    TMSFNCWXHTMLMemo1.AllowDrop  := True;
    TMSFNCWXHTMLMemo1.ReadOnly   := False;
  finally
    TMSFNCWXHTMLMemo1.EndUpdate;
  end;
end;

Pitfalls

Setting FontSizeUnit to a string. It is an enumeration (mfuPt, mfuPx, mfuDefault), not a string like 'pt'.
Expecting CustomCSS to style saved output. CustomCSS styles the editing frame only; it is not embedded into the HTML you save. Persist styling as inline markup or a stylesheet on the consuming side.
Many appearance changes without batching. As with the toolbar, wrap multiple property changes in BeginUpdate / EndUpdate.
