TMS FNC Blox ToolBar

TMS FNC Blox ToolBar provides a context toolbar and four focused toolbars for adding an editing interface around TTMSFNCBloxControl. Use the focused toolbars when you want a conventional editor layout, or use TTMSFNCBloxToolBar when you want popup editing panels close to the selected diagram element.

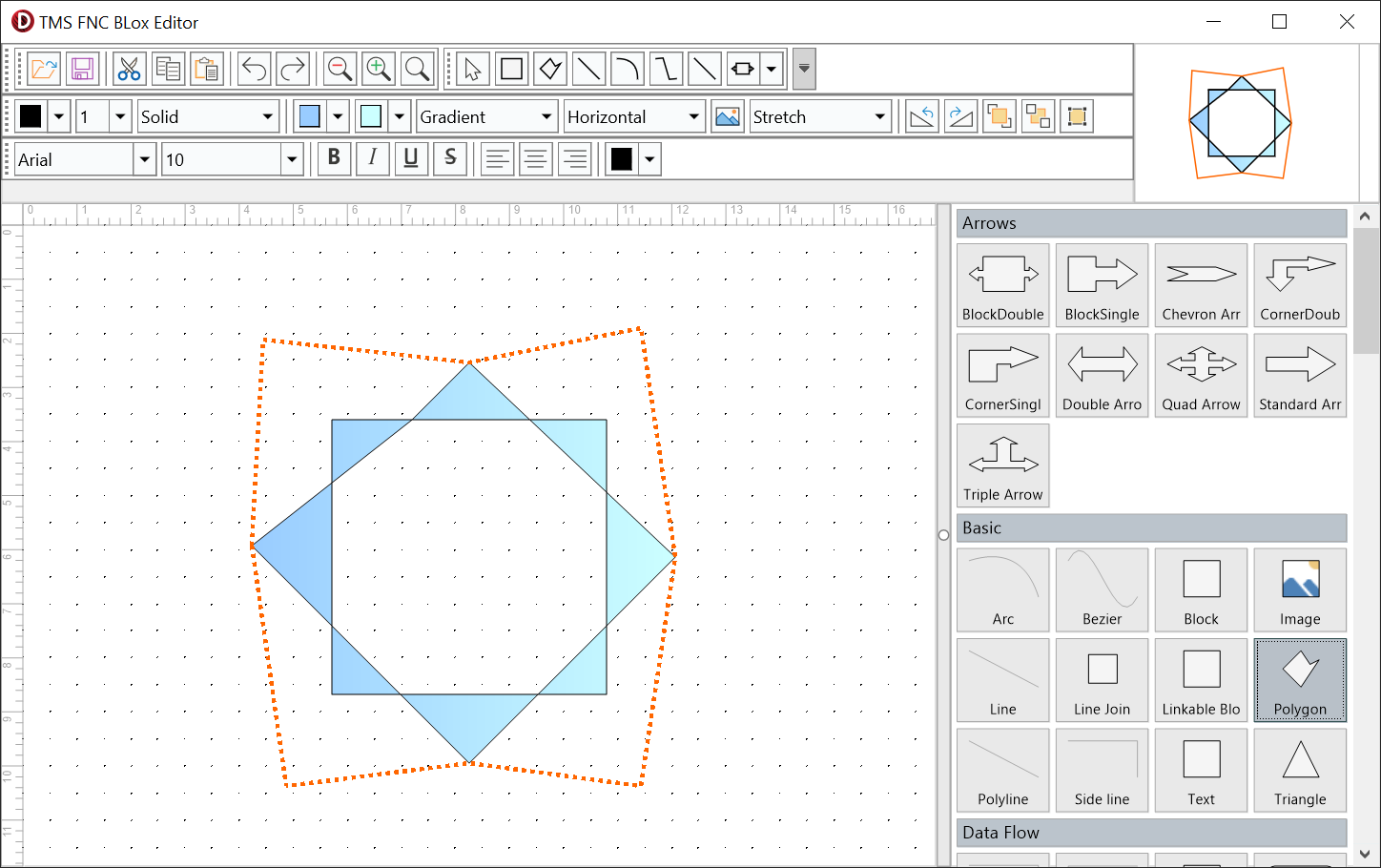

Blox editor with edit, selection, block-format, and text-format toolbars above the diagram canvas
A complete editor assembled from the focused Blox toolbars.

Documentation

Start here Use when
Get started You want working toolbars linked to a Blox Control in a few steps.
Guides You want to choose commands, integrate file actions, format elements, or customize individual controls.
API reference You need the exact properties, methods, events, and event signatures.
Release notes You want what changed in recent versions.

Supported frameworks and dependencies

The toolbar unit family is available for FireMonkey, VCL, and TMS WEB Core. The toolbar bridge also depends on TMS FNC UI Pack; install the matching bridge package before placing toolbar components on a form.

Minimal setup

procedure TForm1.FormCreate(Sender: TObject);
begin
  BloxEditToolBar1.BloxControl := BloxControl1;
  BloxFormatBlockToolBar1.BloxControl := BloxControl1;
  BloxFormatBlockTextToolBar1.BloxControl := BloxControl1;
end;

API map

Role Classes Use for
Context toolbar TTMSFNCBloxToolBar, TTMSFNCBloxCustomToolBar Popup editing panels, default command groups, and apply/command events.
Editing commands TTMSFNCBloxEditToolBar Open/save integration, clipboard operations, undo/redo, and zoom.
Block formatting TTMSFNCBloxFormatBlockToolBar Stroke, fill, image, rotation, z-order, and snap-to-grid commands.
Text formatting TTMSFNCBloxFormatBlockTextToolBar Font, style, alignment, and text-color commands.
Element selection TTMSFNCBloxSelectToolBar Selection mode and insertion of built-in or registered elements.
Custom controls TTMSFNCBloxToolBarButton, TTMSFNCBloxToolBarElementPicker Custom insertion buttons and access to the registered-element picker.
