TMS FNC Blox Control

TTMSFNCBloxControl is the main cross-platform diagramming and flowcharting control. It hosts a canvas on which blocks, lines, groups, and other diagram elements are created, edited, connected, and persisted. The control handles hit-testing, selection, in-place editing, zoom, and serialization, and works across FMX, VCL, and WEB targets.

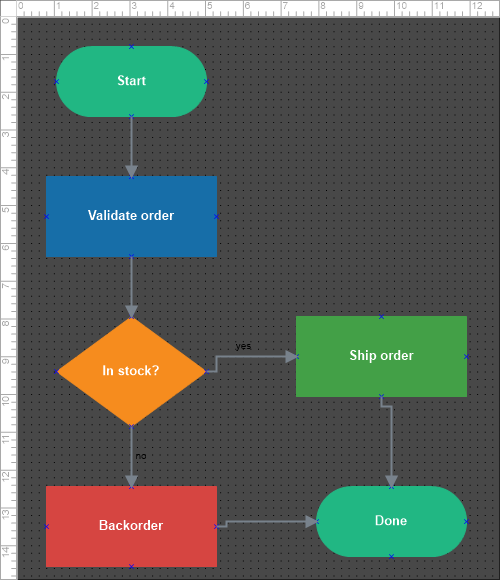

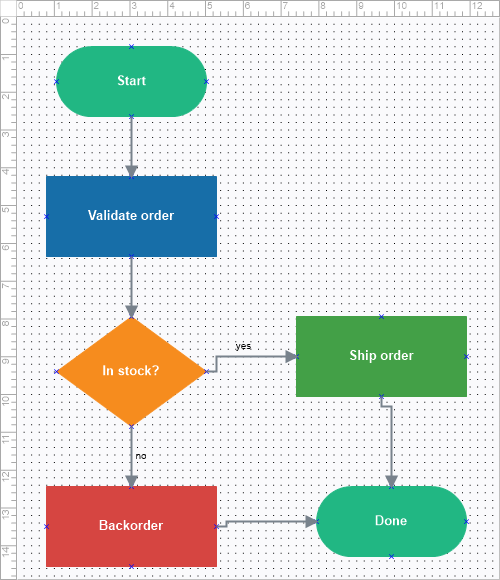

A TMS FNC Blox flowchart with styled blocks connected by labelled lines

Documentation

Start here	Use when
Get started	You want a working diagram with blocks and connectors in a few steps.
Guides	You want task-oriented chapters: elements, blocks, lines, appearance, interaction, persistence, custom elements, and events.
API reference	You want class, property, method, and event details.
Release notes	You want what changed in recent versions.

Supported frameworks

TTMSFNCBloxControl targets FMX (Windows, macOS, iOS, Android, Linux), VCL (Windows), and WEB. It requires TMS FNC Core. The separate Blox ToolBar additionally requires the TMS FNC UI Pack.

Minimal example

procedure TForm1.AddBlockButtonClick(Sender: TObject);
var
  LBlock: TTMSFNCBloxBlock;
begin
  LBlock := TTMSFNCBloxBlock.Create;
  LBlock.Left := 40;
  LBlock.Top := 40;
  LBlock.Width := 160;
  LBlock.Height := 80;
  LBlock.Shape := RoundRect;
  LBlock.Text := 'Hello Blox';
  LBlock.FillColor := MakeGraphicsColor(74, 144, 217);
  LBlock.TextColor := gcWhite;
  BloxControl1.Blox.Add(LBlock);
end;

API map

The diagram surface is built from a small set of cooperating classes:

Role	Classes
Main control	`TTMSFNCBloxControl`
Document	`TTMSFNCBloxXBlox` — owns the element collection
Element base	`TTMSFNCBloxElement`
Blocks	`TTMSFNCBloxBlock` (rectangles, text, images, triangles, groups, linkable, library shapes)
Lines	`TTMSFNCBloxLine` (straight, arc, bezier, side-line)
Appearance	`TTMSFNCBloxFill`, `TTMSFNCBloxStroke`, `TTMSFNCBloxFont`, `TTMSFNCBloxShadow`

Guides

Chapter	Covers
Elements and libraries	Element model, the `Blox` collection, built-in block/line libraries.
Working with blocks	Geometry, shapes, text, pictures, rotation, link points.
Lines and linking	Line styles, arrows, connecting blocks, line text.
Appearance	Fill, stroke, shadow, font; canvas, snap grid, rulers.
Interaction and editing	States, inserting, options, clipboard, undo/redo, grouping, zoom.
Persistence and export	Save/load files and streams, export to image.
Custom elements	Custom block shapes, link points, registration.
Events	Selection, modification, rendering, and editor events.
