Layout priority

Three layers of cell appearance — grid-wide, per-column, and per-cell — resolved in priority order. Plus an event for dynamic per-cell layout with the option to override the default precedence.

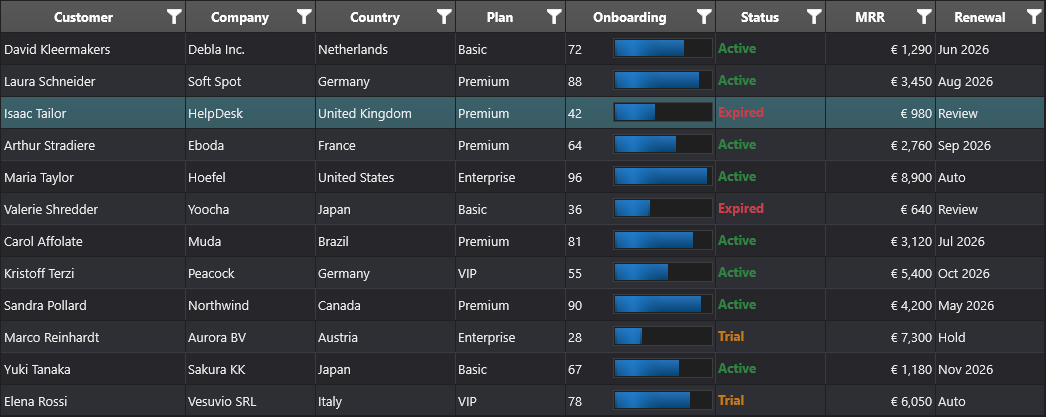

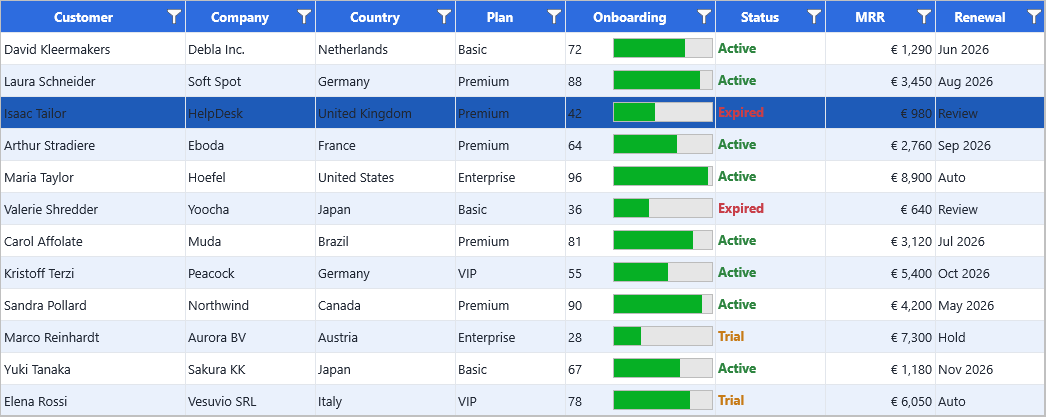

DataGrid showing resolved layout and appearance

Static priority order

When the grid paints a cell, it picks the layout from the first source that has one:

┌─────────────────────────────────────────────────────────────┐
│ 1. Grid.Layouts[col, row]                                   │  highest
│    Per-cell layout, set explicitly with the indexed property│
├─────────────────────────────────────────────────────────────┤
│ 2. Grid.Columns[i].Appearance + AddSetting(gcsAppearance)   │
│    Per-column layout, owned by the column                   │
├─────────────────────────────────────────────────────────────┤
│ 3. Grid.CellAppearance.<state>Layout                        │  lowest
│    Grid-wide defaults, split by visual state (Normal,       │
│    Selected, Focused, Fixed, Group, Summary, Band, …)       │
└─────────────────────────────────────────────────────────────┘

So:

Inline example 1PascalC++

Grid.CellAppearance.NormalLayout.Fill.Color := gcWhite;     // (3) base
Grid.Columns[2].Appearance.NormalLayout.Fill.Color := gcLightYellow;
Grid.Columns[2].AddSetting(gcsAppearance);                  // (2) overrides for column 2
Grid.Layouts[2, 5].Fill.Color := gcRed;                     // (1) overrides for cell (2, 5)

Grid->CellAppearance->NormalLayout->Fill->Color = gcWhite;     // (3) base
Grid->Columns[2].Appearance->NormalLayout->Fill->Color = gcLightYellow;
Grid->Columns[2].AddSetting(gcsAppearance);                  // (2) overrides for column 2
Grid->Layouts[2][5].Fill->Color = gcRed;                     // (1) overrides for cell (2, 5)

For more on each layer, see Appearance & theming.

Visual states

Even within one layer, the grid picks one of several layouts based on the cell's visual state:

Layout	When it applies
`NormalLayout`	Ordinary data cell.
`SelectedLayout`	Cell inside the current selection.
`FocusedLayout`	The single cell with keyboard focus.
`FixedLayout`	Header, footer, fixed columns.
`FixedSelectedLayout`	Highlighted header for the selected column/row.
`GroupLayout`	Group rows from `Grid.Group(...)`.
`SummaryLayout`	Group summary footers.
`BandLayout`	Alternating-row background when banding is enabled.
`FilterMatchLayout`	Cells matching the active filter.

State layouts are merged on top of the base layout — only the properties that differ from NormalLayout are applied.

Dynamic layout via `OnGetCellLayout`

For a layout that depends on cell content (red background only when status is overdue, bold font only on totals), use the event rather than mutating thousands of Layouts[col, row] entries:

Dynamic per-cell layout via OnGetCellLayoutPascalC++

procedure TForm1.GridGetCellLayout(Sender: TObject; ACell: TTMSFNCDataGridCell);
begin
  if (ACell.Column = StatusColumn) and SameText(ACell.Text, 'Overdue') then
    ACell.Layout.Fill.Color := gcMistyRose;
end;

void __fastcall TForm1::GridGetCellLayout(TObject *Sender, TTMSFNCDataGridCell *ACell)
{
  if ((ACell->Column == StatusColumn) && SameText(ACell->Text, "Overdue"))
    ACell->Layout->Fill->Color = gcMistyrose;
}

The event fires after the static priority resolution, so you can read ACell.Layout to see what the grid would otherwise render and tweak from there.

`OnGetCellLayoutHasPriority` — flipping precedence

By default, when both OnGetCellLayout and a stored per-cell Layouts[col, row] exist, the stored data wins. The reasoning: the user explicitly set a per-cell layout, so the event-driven default shouldn't override it.

To reverse this on a per-cell basis, return True from OnGetCellLayoutHasPriority:

Flipping layout precedence with OnGetCellLayoutHasPriorityPascalC++

procedure TForm1.GridGetCellLayoutHasPriority(Sender: TObject;
  ACell: TTMSFNCDataGridCellCoord; var AHasPriority: Boolean);
begin
  if ACell.Column = StatusColumn then
    AHasPriority := True;     // OnGetCellLayout wins for the status column
end;

void __fastcall TForm1::GridGetCellLayoutHasPriority(TObject *Sender,
  const TTMSFNCDataGridCellCoord &ACell, bool &AHasPriority)
{
  TTMSFNCDataGridCellCoord Cell = ACell;
  if (Cell.Column == StatusColumn)
    AHasPriority = true;     // OnGetCellLayout wins for the status column
}

This is how you wire up "this column always reflects state computed at paint time, even if someone has frozen a layout into a particular cell."

Performance note

Setting per-cell layouts (Grid.Layouts[col, row]) allocates a layout object per cell. For thousands of cells, prefer:

A column-level layout if the rule applies to every cell in the column.
An OnGetCellLayout handler if the rule depends on data — it allocates nothing and re-evaluates on every paint.

See Large datasets for more performance guidance.

Combining static layers with dynamic layout

Layout priority only becomes interesting when several sources compete for the same cell. You will typically combine all three static layers, a grid-wide default, a column override and a single-cell layout, with a dynamic OnGetCellLayout handler that reacts to the data. When a stored per-cell layout and the event both want to style a cell, the stored layout wins unless OnGetCellLayoutHasPriority says otherwise. Use this pattern when most of the grid follows simple rules but one column must always reflect state computed at paint time. The example sets the three static layers first, then adds the event pair and explains which source decides for the Status column.

Static layout layers with dynamic layout and event precedencePascalC++

procedure TForm1.SetupLayoutLayers;
begin
  // (3) Grid-wide default per visual state.
  Grid.CellAppearance.NormalLayout.Fill.Color := gcWhite;
  Grid.CellAppearance.SelectedLayout.Fill.Color := gcLightsteelblue;

  // (2) Column override: the whole Status column is pale yellow.
  Grid.Columns[2].Appearance.NormalLayout.Fill.Color := gcLightyellow;
  Grid.Columns[2].AddSetting(gcsAppearance);

  // (1) Per-cell override: wins over the column layout.
  Grid.Layouts[2, 5].Fill.Color := gcLightgray;

  // Dynamic layout and precedence.
  Grid.OnGetCellLayout := GridGetCellLayout;
  Grid.OnGetCellLayoutHasPriority := GridGetCellLayoutHasPriority;
end;

procedure TForm1.GridGetCellLayout(Sender: TObject; ACell: TTMSFNCDataGridCell);
begin
  // Runs after the static resolution, so ACell.Layout already holds the base look.
  if (ACell.Column = 2) and SameText(ACell.Text, 'Overdue') then
    ACell.Layout.Fill.Color := gcMistyrose;
end;

procedure TForm1.GridGetCellLayoutHasPriority(Sender: TObject;
  ACell: TTMSFNCDataGridCellCoord; var AHasPriority: Boolean);
begin
  // Without this, the stored Layouts[2, 5] would beat the event for that cell.
  if ACell.Column = 2 then
    AHasPriority := True;
end;

void __fastcall TForm1::SetupLayoutLayers()
{
  // (3) Grid-wide default per visual state.
  Grid->CellAppearance->NormalLayout->Fill->Color = gcWhite;
  Grid->CellAppearance->SelectedLayout->Fill->Color = gcLightsteelblue;

  // (2) Column override: the whole Status column is pale yellow.
  Grid->Columns->Items[2]->Appearance->NormalLayout->Fill->Color = gcLightyellow;
  Grid->Columns->Items[2]->AddSetting(gcsAppearance);

  // (1) Per-cell override: wins over the column layout.
  Grid->Layouts[2][5]->Fill->Color = gcLightgray;

  // Dynamic layout and precedence.
  Grid->OnGetCellLayout = GridGetCellLayout;
  Grid->OnGetCellLayoutHasPriority = GridGetCellLayoutHasPriority;
}

void __fastcall TForm1::GridGetCellLayout(TObject *Sender, TTMSFNCDataGridCell *ACell)
{
  // Runs after the static resolution, so ACell->Layout already holds the base look.
  if ((ACell->Column == 2) && SameText(ACell->Text, "Overdue"))
    ACell->Layout->Fill->Color = gcMistyrose;
}

void __fastcall TForm1::GridGetCellLayoutHasPriority(TObject *Sender,
  const TTMSFNCDataGridCellCoord &ACell, bool &AHasPriority)
{
  TTMSFNCDataGridCellCoord Cell = ACell;
  // Without this, the stored Layouts[2, 5] would beat the event for that cell.
  if (Cell.Column == 2)
    AHasPriority = true;
}
