Autofill

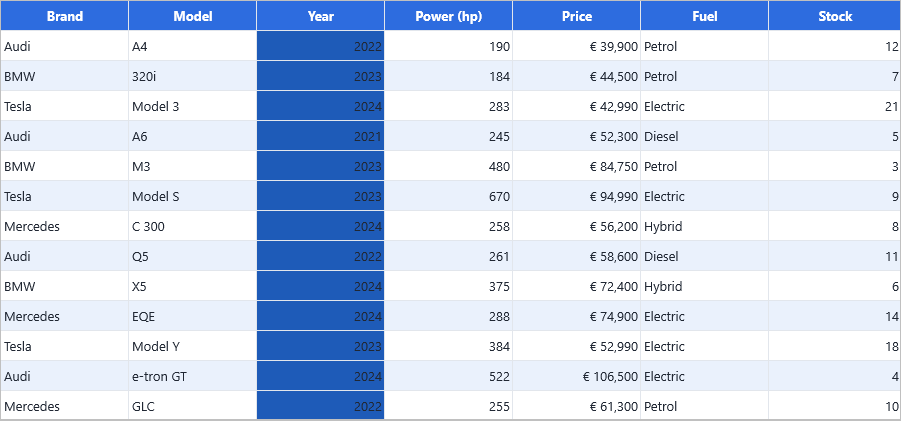

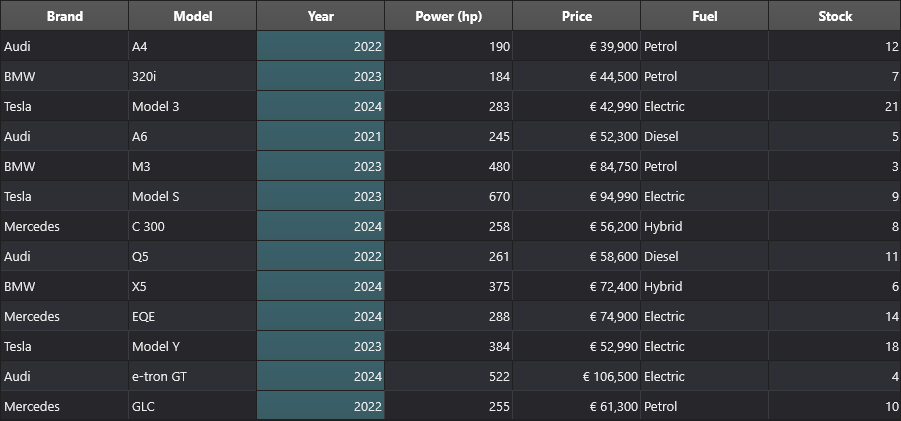

Excel-style fill handle — the user selects a range, drags the small square at the bottom-right, and the grid extrapolates the values. Built-in sequence detection covers numbers, dates, days, months, and custom lists.

Overview

Two pieces:

1. Enable the fill handle via Options.Selection.AutoFill.
2. (Optional) Register custom lists or override the value calculation.

Built-in detection covers numeric sequences (1, 2, 3, 10, 20, 30), date sequences (daily, weekly, monthly, yearly increments), weekday and month names, and any list registered via AutoFillCustomListSet.

Options.Selection.Mode must be gsmCellRange for autofill to work.

Quick example

procedure TForm1.FormCreate(Sender: TObject);
begin
  // Show the AutoFill handle on the active selection
  Grid.Options.Selection.Mode     := gsmCellRange;
  Grid.Options.Selection.AutoFill := True;

  // Register custom lists that AutoFill recognises and cycles through
  Grid.AutoFillCustomListSet('StatusList',
    ['TODO', 'In Progress', 'Review', 'Done']);
  Grid.AutoFillCustomListSet('PriorityList',
    ['Low', 'Medium', 'High', 'Critical']);
  Grid.AutoFillCustomListSet('QuarterList',
    ['Q1', 'Q2', 'Q3', 'Q4']);

  // Hook the calculation event for cases the built-in detector cannot handle.
  Grid.OnAutoFillCalculateValue := AutoFillCalculate;
end;

procedure TForm1.AutoFillCalculate(Sender: TObject;
  SourceCells: TTMSFNCDataGridCellCoordRange;
  SourceValues: TTMSFNCDataGridDataValues;
  TargetCells: TTMSFNCDataGridCellCoordRange;
  FillIndex: Integer;
  Direction: TTMSFNCDataGridDataAutoFillDirection;
  var NewValue: TTMSFNCDataGridCellValue;
  var Handled: Boolean);
begin
  // Example: continue a sequence of single lowercase letters (a, b -> c, d, ...)
  if (Length(SourceValues) >= 2) then
  begin
    NewValue := Char(Ord('a') + FillIndex mod 26);
    Handled := True;
  end;
end;

Step by step

1. Enable

Grid.Options.Selection.Mode    := gsmCellRange;
Grid.Options.Selection.AutoFill := True;

The fill handle appears at the bottom-right corner of the selection. A mouse drag extends the fill in any direction.

2. Programmatic fill

Grid.AutoFill(
  MakeCell(0, 1), MakeCell(0, 2),        // source range (rows 1–2)
  MakeCell(0, 1), MakeCell(0, 19)        // target range (fill rows 1–19)
);

3. Register custom lists

Grid.AutoFillCustomListSet('StatusList',
  ['TODO', 'In Progress', 'Review', 'Done']);

When the user drags from a cell containing one of those strings, the grid cycles through the list.

4. Override the calculation

For domain logic that built-in extrapolation doesn't cover, hook OnAutoFillCalculateValue:

procedure TForm1.AutoFillCalc(Sender: TObject;
  SourceCells: TTMSFNCDataGridCellCoordRange;
  SourceValues: TTMSFNCDataGridDataValues;
  TargetCells: TTMSFNCDataGridCellCoordRange;
  FillIndex: Integer;
  Direction: TTMSFNCDataGridDataAutoFillDirection;
  var NewValue: TTMSFNCDataGridCellValue;
  var Handled: Boolean);
begin
  // compute NewValue from SourceValues and FillIndex
  Handled := True;
end;

FillIndex is 0-based for each cell to fill. Direction is gafdDown, gafdUp, gafdLeft, or gafdRight.

5. Provide a custom list dynamically

If the list items come from a database rather than being pre-registered, hook OnAutoFillGetCustomList:

procedure TForm1.AutoFillGetCustomList(Sender: TObject; BaseValue: string;
  var Values: TArray<string>; var Handled: Boolean);
begin
  if BaseValue.StartsWith('Q') then
  begin
    Values  := ['Q1', 'Q2', 'Q3', 'Q4'];
    Handled := True;
  end;
end;

Shrinking the fill range

The fill handle works in both directions. After the user drags it outward to extend the fill, dragging it back inward — over or inside the original selection — retracts the fill, and the grid clears the cells the handle moves back over. This makes the handle a single gesture for both "fill these cells" and "undo that fill": overshoot and pull back, and the extra cells are emptied rather than left holding stale extrapolated values.

This behaviour is automatic whenever Options.Selection.AutoFill is enabled — there is no separate option to switch it on. The retract clears only the cells beyond the original selection that the previous outward drag had filled; the source selection itself is left untouched.

Combining autofill with a custom list and visual customisation

This example registers a day-name custom list, enables autofill on a cell-range selection, and changes the fill-handle appearance — a typical production setup where autofill replaces a data-entry repetition task:

procedure TForm1.FormCreate(Sender: TObject);
begin
  // Register a custom cyclic list (Step by step — custom lists)
  Grid.AutoFillCustomListSet('Days',
    TArray<string>.Create('Mon', 'Tue', 'Wed', 'Thu', 'Fri', 'Sat', 'Sun'));

  // Require cell-range selection so the fill handle appears
  Grid.Options.Selection.Mode    := gsmCellRange;
  Grid.Options.Selection.AutoFill := True;

  // Visual customisation: make the fill handle more prominent
  Grid.AutoFillAppearance.HandleSize    := 8;
  Grid.AutoFillAppearance.HandleColor   := $00003399;
  Grid.AutoFillAppearance.PreviewStroke.Color := $00003399;
  Grid.AutoFillAppearance.PreviewStroke.Width := 2;

  // Custom list lookup — return the registered list when AutoFill asks
  Grid.OnAutoFillGetCustomList := GridAutoFillGetCustomList;
end;

procedure TForm1.GridAutoFillGetCustomList(Sender: TObject;
  AColumn, ARow: Integer; var AList: TArray<string>);
begin
  AList := Grid.AutoFillCustomListGet('Days');
end;

Visual customisation

The fill handle and preview rectangle styling lives in Grid.AutoFillAppearance — change handle size, fill colour, preview stroke, and other visual properties.

Related API

• Grid.Options.Selection.AutoFill
• Grid.Options.Selection.Mode — must be gsmCellRange
• Grid.AutoFill(SourceStart, SourceEnd, TargetStart, TargetEnd)
• Grid.AutoFillCustomListSet(Name, Values)
• OnAutoFillCalculateValue — full calculation override
• OnAutoFillGetCustomList — dynamic list lookup
• TTMSFNCDataGridAutoFillAppearance

See also

• Editing cells — autofill works alongside inplace editing.
• Demo: Demo/FMX/DataGrid/Basic/AutoFill
