Editing cells

Let users modify grid data with built-in or custom inplace editors — combobox, date picker, color picker, trackbar, spinbox, HTML, or any control you build yourself.

Overview

Each column in the grid can declare which editor appears when the user starts editing one of its cells. The grid ships with a set of ready-made editors covering the common cases:

Editor type Constant Use it for
Plain text getEdit Strings, numbers — the default.
Combobox getComboBox A fixed or data-driven list of choices.
Date picker getDatePicker TDate / TDateTime values.
Color picker getColorPicker Picking colours, optionally targeting cell appearance.
Trackbar getTrackBar Bounded numeric values with a slider.
Spinbox getSpinBox Bounded numeric input with up/down buttons.
HTML editor getHTMLEditor Rich text with bold/italic, links, anchors.
Custom getCustom Any control you provide via OnGetInplaceEditorClass.

You enable editing by assigning Editor on the column and adding the corresponding setting flag (gcsEditor) so the column knows it owns that property at runtime.

Quick example

procedure TForm1.FormCreate(Sender: TObject);
begin
  // Load sample data
  Grid.Options.IO.StartColumn := 1;
  Grid.Options.IO.StartRow := 1;
  Grid.LoadFromCSVData('cars.csv');

  // Allow direct edit on Tab / Arrow / Enter
  Grid.Options.Keyboard.TabKeyDirectEdit := True;
  Grid.Options.Keyboard.ArrowKeyDirectEdit := True;
  Grid.Options.Keyboard.EnterKeyDirectEdit := True;

  // Column 1: combobox with a fixed list of brands
  Grid.Columns[1].AddSetting(gcsEditor);
  Grid.Columns[1].AddSetting(gcsEditorItems);
  Grid.Columns[1].Editor := getComboBox;
  Grid.Columns[1].EditorItems.AddStrings(
    ['Mercedes', 'Audi', 'Bugatti', 'Alfa Romeo', 'Jaguar', 'BMW']);

  // Column 3: trackbar (range customised in OnGetInplaceEditorProperties)
  Grid.Columns[3].AddSetting(gcsEditor);
  Grid.Columns[3].Editor := getTrackBar;

  // Column 4: date picker, displaying values as date/time
  Grid.Columns[4].AddSetting(gcsEditor);
  Grid.Columns[4].Editor := getDatePicker;
  Grid.Columns[4].AddSetting(gcsFormatting);
  Grid.Columns[4].Formatting.&Type := gdftDateTime;

  // Column 5: color picker that targets the cell fill colour
  Grid.Columns[5].AddSetting(gcsEditor);
  Grid.Columns[5].Editor := getColorPicker;
  Grid.Columns[5].AddSetting(gcsEditorTarget);
  Grid.Columns[5].EditorTarget := getFillColor;

  // Column 6: spinbox
  Grid.Columns[6].AddSetting(gcsEditor);
  Grid.Columns[6].Editor := getSpinBox;

  // Column 7: rich HTML editor
  Grid.Columns[7].AddSetting(gcsEditor);
  Grid.Columns[7].Editor := getHTMLEditor;
end;

procedure TForm1.GridGetInplaceEditorProperties(Sender: TObject;
  ACell: TTMSFNCDataGridCellCoord; AInplaceEditor: TTMSFNCDataGridInplaceEditor;
  AInplaceEditorType: TTMSFNCDataGridInplaceEditorType);
begin
  // Customise the trackbar maximum
  if AInplaceEditorType = getTrackBar then
    (AInplaceEditor as TTMSFNCDataGridTrackBar).Max := 3000;
end;

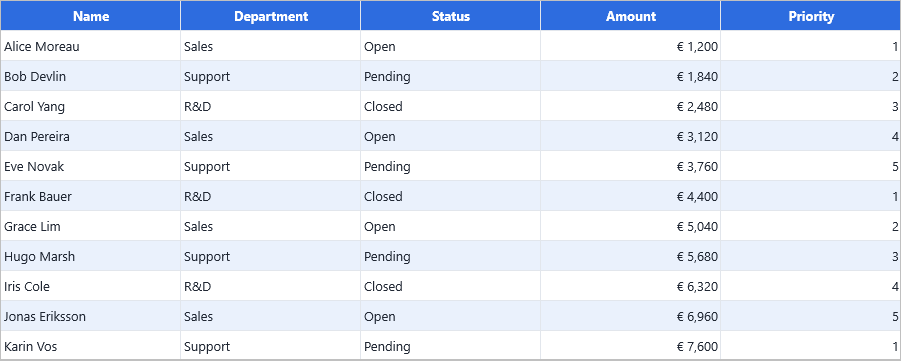

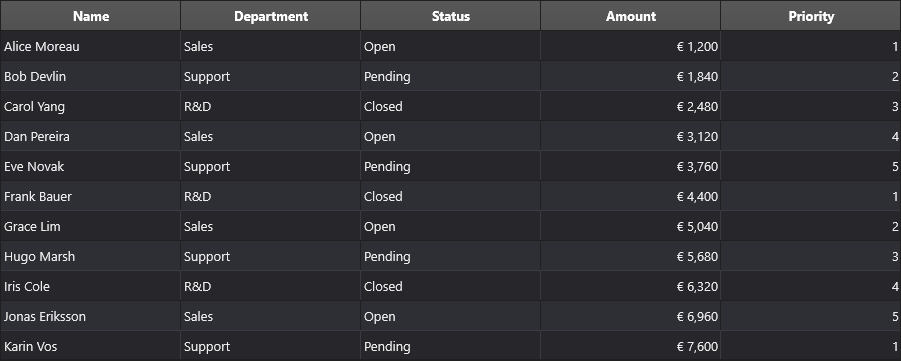

With editing enabled and an editor assigned per column, the grid looks like an ordinary populated grid until the user activates a cell; the configured editor (a combobox on Department, a spinbox on Amount) then opens in place:

DataGrid with editing enabled and a per-column editor configured DataGrid with editing enabled and a per-column editor configured

Step by step

1. Enable editing globally

Grid.Options.Editing.Enabled := True;

2. Choose the editor per column

Set the column's Editor property to one of the constants above:

Grid.Columns[1].Editor := getComboBox;

3. Mark the setting as overridden

Without this step, the column reverts to the grid-level default. AddSetting opts the column in to manage its own copy of the property — the columns editor at design time does this automatically.

Grid.Columns[1].AddSetting(gcsEditor);

4. Provide editor-specific data

Comboboxes need a list of items; format-aware editors need a format type:

// Combobox items
Grid.Columns[1].AddSetting(gcsEditorItems);
Grid.Columns[1].EditorItems.AddStrings(['Mercedes', 'Audi', 'BMW']);

// Date picker formatting
Grid.Columns[4].AddSetting(gcsFormatting);
Grid.Columns[4].Formatting.&Type := gdftDateTime;

5. Enable auto-complete

Auto-complete narrows the combobox drop-down as the user types. Configure it via Options.Editing.AutoComplete:

Grid.Options.Editing.AutoComplete.Enabled := True;

6. Enable direct drop-down

With DirectDropDown := True, the combobox or date picker drops open as soon as the cell enters edit mode — the user doesn't have to click the arrow:

Grid.Options.Editing.DirectDropDown := True;

7. Customise the editor instance

Use OnGetInplaceEditorProperties to tweak the editor before it appears — set ranges, masks, item heights, anything the editor type exposes:

procedure TForm1.GridGetInplaceEditorProperties(Sender: TObject;
  ACell: TTMSFNCDataGridCellCoord; AInplaceEditor: TTMSFNCDataGridInplaceEditor;
  AInplaceEditorType: TTMSFNCDataGridInplaceEditorType);
begin
  if AInplaceEditorType = getTrackBar then
    (AInplaceEditor as TTMSFNCDataGridTrackBar).Max := 3000;
end;

8. (Optional) Target an appearance instead of the value

By default the editor reads and writes the cell value. Set EditorTarget to change a different aspect:

Grid.Columns[5].AddSetting(gcsEditorTarget);
Grid.Columns[5].EditorTarget := getFillColor;

The colour picker now changes the cell's background fill rather than its text.

9. (Optional) Enable direct-edit shortcuts

By default the user has to press F2 (or double-click) to enter edit mode. Enable keyboard shortcuts so typing immediately starts editing:

Grid.Options.Keyboard.TabKeyDirectEdit   := True;
Grid.Options.Keyboard.ArrowKeyDirectEdit := True;
Grid.Options.Keyboard.EnterKeyDirectEdit := True;

Per-cell ReadOnly

Individual cells can be marked read-only independently of the column's editor setting. Set the ReadOnly flag on the extended cell item:

// Prevent editing a specific cell
Grid.CellDataExtended[3, 5].ReadOnly := True;

CellDataExtended[col, row] returns the TTMSFNCDataGridCellItemExtended directly. Use OnGetCellProperties to set ReadOnly dynamically without allocating a persistent item.

For dynamic per-row or per-column logic, use OnGetCellProperties:

procedure TForm1.GridGetCellProperties(Sender: TObject;
  ACell: TTMSFNCDataGridCell);
begin
  // Lock the calculated column
  if ACell.Column = CalcColumn then
    ACell.ReadOnly := True;

  // Lock all cells in completed rows
  if Grid.Booleans[StatusColumn, ACell.Row] then
    ACell.ReadOnly := True;
end;

ReadOnly set in OnGetCellProperties is transient — it applies only for the current render or interaction pass. Permanently locked cells (like formula columns) should combine both approaches: set the flag persistently on the cell item and enforce it in the event for safety.

Custom editors

For controls that aren't on the built-in list, set Editor := getCustom and supply the editor class in OnGetInplaceEditorClass (the handler exposes a var AInplaceEditorClass: TTMSFNCDataGridInplaceEditorClass). Any descendant of TTMSFNCDataGridInplaceEditor is supported.

Choosing the editor per cell

Setting Editor on the column is the right tool when every cell in a column edits the same way. Some grids need the editor to vary per cell — a settings or key/value grid where each row edits a different kind of value (a date on one row, a colour on the next, a free string on a third). For that, leave the column editor unset and decide at runtime in OnGetInplaceEditorType, which fires each time a cell is about to open for editing and lets you return a different built-in editor per cell. For a non-built-in control, return a class from OnGetInplaceEditorClass instead.

procedure TForm1.FormCreate(Sender: TObject);
begin
  Grid.Options.Editing.Enabled := True;
  // The value column manages its own editor; the type column (0) drives it.
  Grid.Columns[1].AddSetting(gcsEditor);
end;

procedure TForm1.GridGetInplaceEditorType(Sender: TObject;
  ACell: TTMSFNCDataGridCellCoord;
  var AInplaceEditorType: TTMSFNCDataGridInplaceEditorType);
begin
  // Only the value column (1) varies its editor per row.
  if ACell.Column <> 1 then
    Exit;

  // Pick the editor from the row's "type" in column 0.
  if Grid.Strings[0, ACell.Row] = 'Date' then
    AInplaceEditorType := getDatePicker
  else if Grid.Strings[0, ACell.Row] = 'Color' then
    AInplaceEditorType := getColorPicker
  else if Grid.Strings[0, ACell.Row] = 'Choice' then
    AInplaceEditorType := getComboBox
  else
    AInplaceEditorType := getEdit;
end;

OnGetInplaceEditorType runs on every edit, so keep the decision cheap — read a type column or a lookup, not a database round-trip.

Read-only and role-based permissions

Editability is layered: each level below narrows what the level above allows, so you can lock the whole grid, a column, a single cell, or gate edits on a runtime role. Choose the narrowest mechanism that expresses your rule.

Mechanism Scope Use it when
Options.Editing.Enabled Whole grid Editing is on or off globally.
Omit gcsEditor on the column Column A column is display-only.
CellDataExtended[col, row].ReadOnly One cell, persistent A specific cell is permanently locked.
OnGetCellProperties → ACell.ReadOnly One cell, transient Lock by a data-driven rule evaluated at render.
OnCanEditCell Each edit attempt Gate editing on a role or row state.
OnBeforeCutToClipboard / OnBeforePasteFromClipboard / OnBeforeClearSelectedCells Bulk edits Block clipboard and clear operations.

OnCanEditCell is the right place for a role check because it fires for every edit attempt regardless of which editor the cell uses. For a fully read-only or role-based grid, route the mutating actions — edit, delete, clear, clipboard write — through a single flag so one toggle flips the whole grid:

procedure TForm1.ApplyPermissions;
begin
  // Wire every mutating action through the same role check. Flip FCanEdit and
  // call Grid.Invalidate to switch the whole grid between read-only and editable.
  Grid.OnCanEditCell := GridCanEditCell;
  Grid.OnCanDeleteRow := GridCanDeleteRow;
  Grid.OnBeforeClearSelectedCells := GridBeforeClearSelectedCells;
  Grid.OnBeforeCutToClipboard := GridBeforeClipboardWrite;
  Grid.OnBeforePasteFromClipboard := GridBeforeClipboardWrite;
end;

procedure TForm1.GridCanEditCell(Sender: TObject; AColumn, ARow: Integer;
  var ACanEdit: Boolean);
begin
  ACanEdit := FCanEdit;
end;

procedure TForm1.GridCanDeleteRow(Sender: TObject; ARow: Integer;
  var ACanDelete: Boolean);
begin
  ACanDelete := FCanEdit;
end;

procedure TForm1.GridBeforeClearSelectedCells(Sender: TObject;
  ASelection: TTMSFNCDataGridCellCoordRange; var ACanClear: Boolean);
begin
  ACanClear := FCanEdit;
end;

procedure TForm1.GridBeforeClipboardWrite(Sender: TObject;
  var ACanExecute: Boolean);
begin
  // Shared by cut and paste: both modify grid content.
  ACanExecute := FCanEdit;
end;

Each var ACan… parameter arrives pre-set to the grid's normal behaviour; only assign it in the branch you want to override, and leave it untouched otherwise.

Combining editors, validation and permissions

A real data-entry grid uses several of these features at once: per-column editors for input, validation to reject bad values, and a permission gate so only authorised users can change data. The validation hook itself — OnCellEditValidateData, together with the value-transfer events — is covered in depth in Inplace editor events; the example below shows the pieces wired together into one setup.

procedure TForm1.SetupDataEntryGrid;
begin
  Grid.Options.Editing.Enabled := True;

  // Per-column editors: a fixed-choice department and a numeric headcount.
  Grid.Columns[1].AddSetting(gcsEditor);
  Grid.Columns[1].Editor := getComboBox;
  Grid.Columns[1].AddSetting(gcsEditorItems);
  Grid.Columns[1].EditorItems.AddStrings(['Sales', 'Support', 'R&D']);

  Grid.Columns[2].AddSetting(gcsEditor);
  Grid.Columns[2].Editor := getSpinBox;

  // Validation + permission gate, wired together.
  Grid.OnCanEditCell := GridCanEditCell;
  Grid.OnCellEditValidateData := GridValidate;
end;

procedure TForm1.GridCanEditCell(Sender: TObject; AColumn, ARow: Integer;
  var ACanEdit: Boolean);
begin
  // Read-only unless the user may edit; the key column locks once it has data.
  ACanEdit := FCanEdit and not ((AColumn = 0) and (Grid.Strings[0, ARow] <> ''));
end;

procedure TForm1.GridValidate(Sender: TObject;
  ACell: TTMSFNCDataGridCellCoord;
  AInplaceEditor: TTMSFNCDataGridInplaceEditor;
  var AValue: TTMSFNCDataGridCellValue; var AValid: Boolean);
begin
  // Headcount (column 2) must be a positive integer; rejection keeps the editor open.
  if ACell.Column = 2 then
    AValid := AValue.AsInteger > 0;
end;

Validation rejects a value by setting AValid := False, which keeps the editor open so the user can correct the entry rather than silently discarding it.

Common mistakes

  • Editor reverts to the grid default. The column needs AddSetting(gcsEditor) to own its Editor value; without it the assignment is ignored at runtime.
  • Validating too late. OnAfter… events are read-only — the value is already stored. Validate in OnCellEditValidateData (it receives the parsed TValue) or in OnBeforeCloseInplaceEditor.
  • A var ACanEdit/ACanExecute flag assigned unconditionally. It is pre-set to the grid's intended behaviour; only override in the branch you mean to change.
  • Confusing persistent and transient read-only. CellDataExtended[col, row].ReadOnly sticks; ACell.ReadOnly set in OnGetCellProperties applies only to the current render. Lock formula columns with both.
  • TTMSFNCDataGridColumn.Editor — editor type constant.
  • TTMSFNCDataGridColumn.EditorItems — combobox items list.
  • TTMSFNCDataGridColumn.EditorTarget — what the editor modifies (getFillColor, etc.).
  • TTMSFNCDataGridCellItemExtended.ReadOnly — per-cell read-only flag; prevents editing regardless of column settings.
  • TTMSFNCDataGridCell.ReadOnly — same flag exposed on the rendering cell for use in OnGetCellProperties.
  • TTMSFNCDataGrid.CellDataExtended[col, row] — access extended cell item directly; set .ReadOnly to lock a specific cell persistently.
  • TTMSFNCDataGrid.Options.Editing.Enabled
  • TTMSFNCDataGrid.Options.Editing.AutoComplete.Enabled
  • TTMSFNCDataGrid.Options.Editing.DirectDropDown
  • TTMSFNCDataGrid.Options.Keyboard.TabKeyDirectEdit / ArrowKeyDirectEdit / EnterKeyDirectEdit
  • OnGetInplaceEditorProperties — tweak the editor before it shows.
  • OnGetInplaceEditorType — choose the built-in editor per cell.
  • OnGetInplaceEditorClass — provide a custom editor class (getCustom).
  • OnCanEditCell — gate editing per attempt (role / row state).
  • OnBeforeCutToClipboard / OnBeforePasteFromClipboard / OnBeforeClearSelectedCells — block bulk edits.
  • OnGetCellProperties — set ACell.ReadOnly dynamically per cell.
  • OnCellEditGetData / OnCellEditSetData / OnCellEditValidateData
