Find & replace

Built-in modal dialogs for searching and replacing cell values, with events to pre-fill, validate, or react to each operation.

Overview

Two methods open the dialogs:

Method	What it does
Grid.ShowFindDialog	Opens the find dialog. The first match is highlighted; subsequent invocations move to the next match.
Grid.ShowReplaceDialog	Opens the replace dialog. Each match is also writable.

Both dialogs are modal. Ctrl+F and Ctrl+H open them by default — see Options.Keyboard.FindShortcut / ReplaceShortcut.

Quick example

Inline example 1PascalC++

procedure TForm1.FindButtonClick(Sender: TObject);
begin
  Grid.ShowFindDialog;
end;

void __fastcall TForm1::FindButtonClick(TObject *Sender)
{
  Grid->ShowFindDialog;
}

That's it for the basic case. The user types a search string in the dialog, presses Find Next, and the grid jumps to each match.

Step by step

1. Show the dialogs

Inline example 2PascalC++

Grid.ShowFindDialog;
Grid.ShowReplaceDialog;

Grid->ShowFindDialog;
Grid->ShowReplaceDialog;

2. Wire keyboard shortcuts

The shortcuts are on by default. To disable them (e.g. because you want to bind your own actions):

Inline example 3PascalC++

Grid.Options.Keyboard.FindShortcut    := False;
Grid.Options.Keyboard.ReplaceShortcut := False;

Grid->Options->Keyboard->FindShortcut    = false;
Grid->Options->Keyboard->ReplaceShortcut = false;

3. Pre-fill the search text

Use OnBeforeShowFindDialog to set the initial text or cancel the dialog:

Pre-fill or cancel the find dialogPascalC++

procedure TForm1.GridBeforeShowFindDialog(Sender: TObject;
  AFindDialog: TTMSFNCFindDialog; var ACanShow: Boolean);
begin
  AFindDialog.FindText := SearchEdit.Text;       // pre-fill from a separate edit
end;

void __fastcall TForm1::GridBeforeShowFindDialog(TObject *Sender,
  TTMSFNCFindDialog *AFindDialog, bool &ACanShow)
{
  AFindDialog->FindText = SearchEdit->Text;       // pre-fill from a separate edit
}

The same pattern applies to OnBeforeShowReplaceDialog, which receives a TTMSFNCReplaceDialog.

4. React to each find or replace operation

Two pairs of events fire for each operation — one before (cancellable), one after (informational):

Validate and react to each find operationPascalC++

procedure TForm1.GridBeforeDialogFind(Sender: TObject;
  AFindText: string;
  var AParameters: TTMSFNCDataGridDataFindParameters;
  var ACanFind: Boolean);
begin
  if Length(AFindText) < 2 then
    ACanFind := False;             // cancel — too short
end;

procedure TForm1.GridAfterDialogFind(Sender: TObject;
  AFindText: string;
  AResultCell: TTMSFNCDataGridCellCoord;
  AFound: Boolean);
begin
  if AFound then
    Caption :=
      Format('Found at col %d, row %d', [AResultCell.Column, AResultCell.Row])
  else
    Caption := 'Not found';
end;

void __fastcall TForm1::GridBeforeDialogFind(TObject *Sender,
  System::UnicodeString AFindText,
  TTMSFNCDataGridDataFindParameters &AParameters,
  bool &ACanFind)
{
  if (AFindText.Length() < 2)
    ACanFind = false;             // cancel - too short
}

void __fastcall TForm1::GridAfterDialogFind(TObject *Sender,
  System::UnicodeString AFindText,
  const TTMSFNCDataGridCellCoord &AResultCell,
  bool AFound)
{
  TTMSFNCDataGridCellCoord Cell = AResultCell;
  if (AFound)
    Caption =
      Format("Found at col %d, row %d", ARRAYOFCONST((Cell.Column, Cell.Row)));
  else
    Caption = "Not found";
}

Replace operations have equivalents OnBeforeDialogReplace (AFindText, AReplaceText, AParameters, ACanReplace) and OnAfterDialogReplace (with AReplaceCount — the total number of cells changed in this run).

Programmatic find without the dialog

If you want a quiet, headless find — for example to highlight matches in a status bar — bypass the dialog and call the find API directly:

Quiet find without the dialogPascalC++

procedure TForm1.QuietFind;
var
  Params: TTMSFNCDataGridDataFindParameters;
  Found: TTMSFNCDataGridCellCoord;
begin
  Params := [gfnAutoGoto];
  Found := Grid.Find('Smith', Params);
  if Found.Column >= 0 then
    Grid.GoToCell(Found);
end;

void __fastcall TForm1::QuietFind()
{
  TTMSFNCDataGridDataFindParameters Params;
  Params << gfnAutoGoto;
  TTMSFNCDataGridCellCoord Found = Grid->Find("Smith", Params);
  if (Found.Column >= 0)
    Grid->GoToCell(Found);
}

For typing-driven row jumping (no dialog at all), see Keyboard & mouse → Lookup.

Controlling the search with TTMSFNCDataGridDataFindParameters

Find, Replace, and the dialog events all accept a TTMSFNCDataGridDataFindParameters value — a set of flags that together define how the search runs.

Control the search with a parameter setPascalC++

procedure TForm1.FindWithParameters;
var
  Params: TTMSFNCDataGridDataFindParameters;
  Found: TTMSFNCDataGridCellCoord;
begin
  Params := [gfnMatchCase, gfnAutoGoto, gfnIgnoreHTMLTags];
  Found := Grid.Find('Smith', Params);
end;

void __fastcall TForm1::FindWithParameters()
{
  TTMSFNCDataGridDataFindParameters Params;
  Params << gfnMatchCase << gfnAutoGoto << gfnIgnoreHTMLTags;
  TTMSFNCDataGridCellCoord Found = Grid->Find("Smith", Params);
}

You can also assemble a default set and override individual flags in OnBeforeDialogFind:

Override flags before each dialog findPascalC++

procedure TForm1.GridBeforeDialogFind(Sender: TObject;
  AFindText: string;
  var AParameters: TTMSFNCDataGridDataFindParameters;
  var ACanFind: Boolean);
begin
  Include(AParameters, gfnIgnoreHTMLTags);  // always strip HTML during dialog find
  Include(AParameters, gfnIncludeHiddenRows);
end;

void __fastcall TForm1::GridBeforeDialogFind(TObject *Sender,
  System::UnicodeString AFindText,
  TTMSFNCDataGridDataFindParameters &AParameters,
  bool &ACanFind)
{
  AParameters << gfnIgnoreHTMLTags;  // always strip HTML during dialog find
  AParameters << gfnIncludeHiddenRows;
}

Flag reference

Flag	Effect
gfnMatchCase	Case-sensitive comparison. Default is case-insensitive.
gfnMatchFull	Match the whole cell value; without this flag a substring match is performed.
gfnMatchStart	Match only when AFindText appears at the start of the cell value.
gfnMatchRegular	Treat AFindText as a regular expression.
gfnBackward	Search backward from the current position instead of forward.
gfnDirectionLeftRight	Scan left-to-right within each row before moving to the next row. Default is top-to-bottom within each column.
gfnAutoGoto	Automatically scroll the grid to bring the found cell into view.
gfnIgnoreHTMLTags	Strip HTML tags before comparing — useful when cell data contains markup.
gfnIncludeFixed	Include fixed (header) rows in the search.
gfnIncludeHiddenRows	Include rows that are currently hidden by a filter.
gfnIncludeHiddenColumns	Include columns that are currently hidden.
gfnFindInCurrentRow	Restrict the search to the row that contains the focused cell.
gfnFindInCurrentColumn	Restrict the search to the column that contains the focused cell.
gfnFindInPresetColumn	Restrict the search to a specific column set programmatically (see Find overloads that accept a column parameter).
gfnFindInPresetRow	Restrict the search to a specific row set programmatically.
gfnSelectedCells	Search only within the currently selected cell range.

Programmatic highlight and mark

Two pairs of methods let you highlight or persistently mark cells whose text contains a search string — without opening any dialog.

HilightCells applies a temporary visual highlight. It clears automatically when the grid scrolls or repaints. Use it for live search feedback:

Inline example 4PascalC++

var Opts := DefaultHilightOptions;
Opts.Mode          := ghmGrid;        // ghmCell, ghmColumn, ghmRow, ghmGrid
Opts.CaseSensitive := False;
Opts.FullText      := False;          // substring match; True = whole-cell match
Grid.HilightCells('overdue', Opts);

// Remove the highlight when the search box clears
Grid.UnhilightCells(Opts);

var Opts = DefaultHilightOptions;
Opts->Mode          = ghmGrid;        // ghmCell, ghmColumn, ghmRow, ghmGrid
Opts->CaseSensitive = false;
Opts->FullText      = false;          // substring match; true = whole-cell match
Grid->HilightCells(L"overdue", Opts);

// Remove the highlight when the search box clears
Grid->UnhilightCells(Opts);

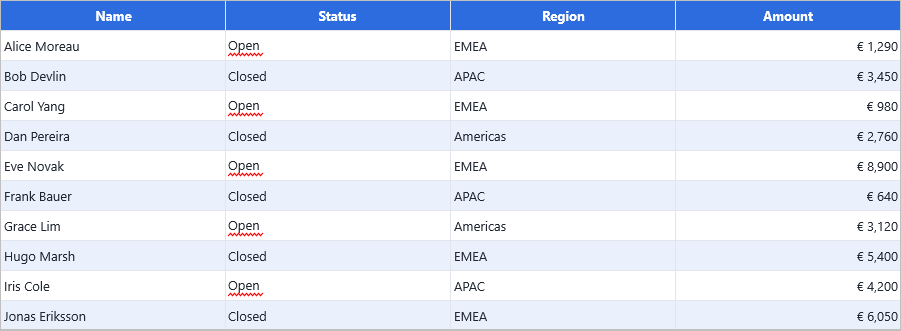

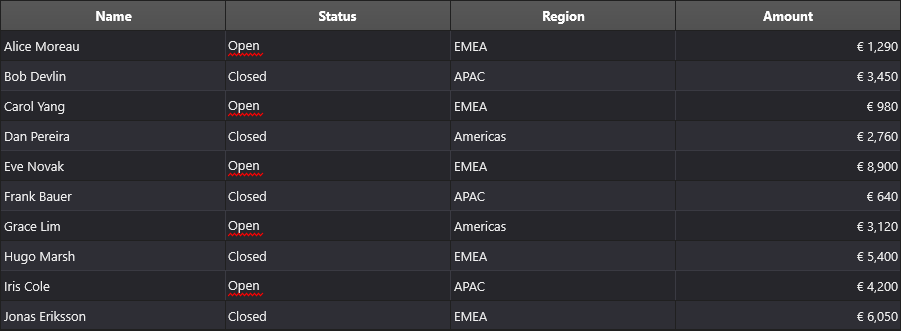

MarkCells applies a persistent mark that survives repaint and scroll. Marks are rendered as a coloured background chip and remain until explicitly removed:

Inline example 5PascalC++

var Opts := DefaultMarkOptions;      // same record type as HilightOptions
Opts.Mode          := ghmGrid;
Opts.CaseSensitive := False;

Grid.MarkCells('critical', Opts);    // mark all cells containing 'critical'

// Remove when done
Grid.UnmarkCells(Opts);

var Opts = DefaultMarkOptions;      // same record type as HilightOptions
Opts->Mode          = ghmGrid;
Opts->CaseSensitive = false;

Grid->MarkCells(L"critical", Opts);    // mark all cells containing L"critical"

// Remove when done
Grid->UnmarkCells(Opts);

TTMSFNCDataGridHilightMode controls the scope:

Value	Scope
ghmCell	One specific cell (uses Opts.Column and Opts.Row)
ghmColumn	Every cell in the column specified by Opts.Column
ghmRow	Every cell in the row specified by Opts.Row
ghmGrid	Every cell in the entire grid

Both DefaultHilightOptions and DefaultMarkOptions are global helper functions that return a zero-initialised record with Mode := ghmGrid.

MarkCells shares the same TTMSFNCDataGridHilightOptions record type (aliased as TTMSFNCDataGridMarkOptions). The visual difference between a mark and a highlight is controlled by the grid's cell appearance — marks use the MarkedLayout appearance state.

Callback reference

Event	When it fires
OnBeforeShowFindDialog	Before the find dialog is displayed; ACanShow cancels.
OnAfterShowFindDialog	After the find dialog has been shown.
OnBeforeShowReplaceDialog	Before the replace dialog is displayed.
OnAfterShowReplaceDialog	After the replace dialog has been shown.
OnBeforeDialogFind	Before each find operation; ACanFind cancels.
OnAfterDialogFind	After each find operation; reports result cell and found flag.
OnBeforeDialogReplace	Before each replace operation; ACanReplace cancels.
OnAfterDialogReplace	After replace completes; reports total replacement count.

Localizing the dialogs

Dialog labels follow the system locale by default. To override individual strings, use the dialog's Localization property after OnBeforeShowFindDialog fires (see Localization).

Combining find parameters with marking

The dialog finds one cell at a time, but users often want to see every match. Combine a parameter set with persistent marking to get both: the dialog navigates to the first hit while MarkCells flags all other hits until the next search. Use this when a result list is long enough that jumping between hits is not enough. The example forces gfnAutoGoto and gfnIgnoreHTMLTags in OnBeforeDialogFind, cancels searches shorter than two characters, and in OnAfterDialogFind clears the previous marks with UnmarkCells before marking the new matches and reporting the first hit in the form caption.

Find parameters together with persistent markingPascalC++

procedure TForm1.SetupFindAndMark;
begin
  Grid.OnBeforeDialogFind := GridBeforeDialogFind;
  Grid.OnAfterDialogFind := GridAfterDialogFind;
end;

procedure TForm1.GridBeforeDialogFind(Sender: TObject; AFindText: string;
  var AParameters: TTMSFNCDataGridDataFindParameters; var ACanFind: Boolean);
begin
  // Scroll to the hit and ignore markup; the search stays case-insensitive.
  AParameters := [gfnAutoGoto, gfnIgnoreHTMLTags];
  ACanFind := Length(AFindText) >= 2;
end;

procedure TForm1.GridAfterDialogFind(Sender: TObject; AFindText: string;
  AResultCell: TTMSFNCDataGridCellCoord; AFound: Boolean);
var
  Opts: TTMSFNCDataGridMarkOptions;
begin
  Opts := DefaultMarkOptions;
  Opts.Mode := ghmGrid;
  Opts.CaseSensitive := False;

  Grid.UnmarkCells(Opts);                 // drop the marks of the previous search
  if AFound then
  begin
    Grid.MarkCells(AFindText, Opts);      // mark every cell that contains the text
    Caption := Format('First hit: column %d, row %d', [AResultCell.Column, AResultCell.Row]);
  end
  else
    Caption := 'Not found';
end;

void __fastcall TForm1::SetupFindAndMark()
{
  Grid->OnBeforeDialogFind = GridBeforeDialogFind;
  Grid->OnAfterDialogFind = GridAfterDialogFind;
}

void __fastcall TForm1::GridBeforeDialogFind(TObject *Sender,
  System::UnicodeString AFindText,
  TTMSFNCDataGridDataFindParameters &AParameters,
  bool &ACanFind)
{
  // Scroll to the hit and ignore markup; the search stays case-insensitive.
  AParameters = TTMSFNCDataGridDataFindParameters() << gfnAutoGoto << gfnIgnoreHTMLTags;
  ACanFind = AFindText.Length() >= 2;
}

void __fastcall TForm1::GridAfterDialogFind(TObject *Sender,
  System::UnicodeString AFindText,
  const TTMSFNCDataGridCellCoord &AResultCell,
  bool AFound)
{
  TTMSFNCDataGridCellCoord Cell = AResultCell;
  TTMSFNCDataGridMarkOptions Opts = DefaultMarkOptions();
  Opts.Mode = ghmGrid;
  Opts.CaseSensitive = false;

  Grid->UnmarkCells(Opts);                 // drop the marks of the previous search
  if (AFound)
  {
    Grid->MarkCells(AFindText, Opts);      // mark every cell that contains the text
    Caption = Format("First hit: column %d, row %d", ARRAYOFCONST((Cell.Column, Cell.Row)));
  }
  else
    Caption = "Not found";
}

Related API

• Grid.ShowFindDialog, Grid.ShowReplaceDialog
• Grid.Options.Keyboard.FindShortcut / ReplaceShortcut
• Grid.FindDialog, Grid.ReplaceDialog — direct access to the dialog instances.
• OnBeforeShowFindDialog, OnAfterShowFindDialog
• OnBeforeShowReplaceDialog, OnAfterShowReplaceDialog
• OnBeforeDialogFind, OnAfterDialogFind
• OnBeforeDialogReplace, OnAfterDialogReplace
• Grid.HilightCells(AText, AOptions) — temporary highlight matching cells
• Grid.UnhilightCells(AOptions) — remove highlights
• Grid.MarkCells(AText, AOptions) — persistent mark matching cells
• Grid.UnmarkCells(AOptions) — remove marks
• TTMSFNCDataGridHilightOptions — scope (Mode), CaseSensitive, FullText, Column, Row
• TTMSFNCDataGridHilightMode — ghmCell, ghmColumn, ghmRow, ghmGrid
• DefaultHilightOptions / DefaultMarkOptions — convenience constructors
• TTMSFNCDataGridDataFindParameter — individual flag values (see table above)
• TTMSFNCDataGridDataFindParameters — set of TTMSFNCDataGridDataFindParameter

See also

• Keyboard & mouse — typeahead lookup is a lighter alternative.
• Localization — translating the dialog labels.
