Split large datasets into pages with a built-in footer that shows first/prev/next/last buttons, a page-selector dropdown, and a "Page n of m" label. Or drive paging programmatically.

Overview

Set Grid.Paging := True and the grid renders one page of rows at a time. The footer (if visible) gains a paging toolbar with navigation buttons, a page dropdown, and an info label. Programmatic methods let you wire your own buttons or react to page changes.

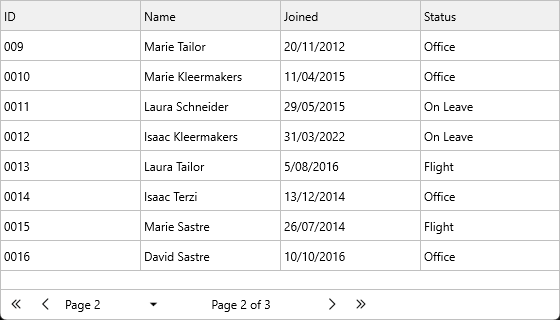

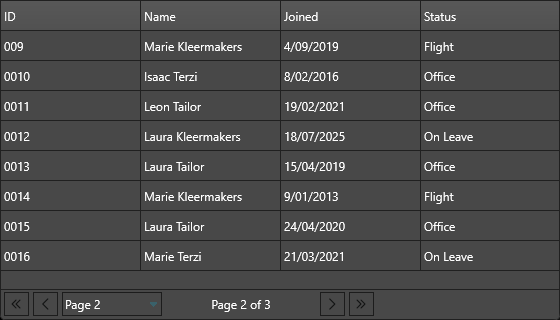

DataGrid showing page 2 of 3 with the footer paging toolbar: first/previous buttons, a page-selector dropdown, a 'Page 2 of 3' label, and next/last buttons DataGrid showing page 2 of 3 with the footer paging toolbar in dark theme

Paging composes cleanly with sorting, filtering, and grouping — they all run on the full data, then paging slices the result.

Quick example

Inline example 1PascalC++
Grid.LoadSampleData;
Grid.Paging := True;

Grid.Footer.Visible        := True;
Grid.Footer.Paging.Visible := True;

Grid->LoadSampleData;
Grid->Paging = true;

Grid->Footer->Visible        = true;
Grid->Footer->Paging->Visible = true;

Step by step

1. Enable paging

Inline example 2PascalC++
Grid.Paging := True;

Grid->Paging = true;
Inline example 3PascalC++
Grid.Footer.Visible        := True;
Grid.Footer.Paging.Visible := True;
Grid.Footer.Paging.Size    := 30;          // height of the paging area

Grid.Footer.Paging.ShowPageSelector      := True;
Grid.Footer.Paging.ShowPageInfo          := True;
Grid.Footer.Paging.ShowNavigationButtons := True;

// widths for each paging control
Grid.Footer.Paging.PageSelectorWidth     := 100;
Grid.Footer.Paging.NavigationButtonWidth := 25;
Grid.Footer.Paging.PageInfoWidth         := 150;

// Customise the label text using %d placeholders
// PageInfoFormat default: 'Page %d of %d'   (%d = current page, %d = total pages)
Grid.Footer.Paging.PageInfoFormat     := 'Page %d / %d';

// PageSelectorFormat default: 'Page %d'   (%d = page number in the dropdown)
Grid.Footer.Paging.PageSelectorFormat := 'p. %d';

Grid->Footer->Visible        = true;
Grid->Footer->Paging->Visible = true;
Grid->Footer->Paging->Size    = 30;          // height of the paging area

Grid->Footer->Paging->ShowPageSelector      = true;
Grid->Footer->Paging->ShowPageInfo          = true;
Grid->Footer->Paging->ShowNavigationButtons = true;

// widths for each paging control
Grid->Footer->Paging->PageSelectorWidth     = 100;
Grid->Footer->Paging->NavigationButtonWidth = 25;
Grid->Footer->Paging->PageInfoWidth         = 150;

// Customise the label text using %d placeholders
// PageInfoFormat default: L"Page %d of %d"   (%d = current page, %d = total pages)
Grid->Footer->Paging->PageInfoFormat     = L"Page %d / %d";

// PageSelectorFormat default: L"Page %d"   (%d = page number in the dropdown)
Grid->Footer->Paging->PageSelectorFormat = L"p. %d";

3. Navigate programmatically

Inline example 4PascalC++
Grid.FirstPage;
Grid.NextPage;
Grid.PreviousPage;
Grid.LastPage;

Grid.GoToPage(2);                          // 0-based — page 3
Grid.GoToFirstPage;                        // alias for FirstPage
Grid.GoToLastPage;                         // alias for LastPage

Grid.PageIndex := 5;                       // direct assignment

Grid->FirstPage;
Grid->NextPage;
Grid->PreviousPage;
Grid->LastPage;

Grid->GoToPage(2);                          // 0-based — page 3
Grid->GoToFirstPage;                        // alias for FirstPage
Grid->GoToLastPage;                         // alias for LastPage

Grid->PageIndex = 5;                       // direct assignment

4. Query the current state

Inline example 5PascalC++
var
  CurrentPage, TotalPages: Integer;
begin
  CurrentPage := Grid.PageIndex;           // 0-based
  TotalPages  := Grid.PageCount;

  if CurrentPage = 0 then ShowMessage('First page');
  if CurrentPage = TotalPages - 1 then ShowMessage('Last page');
end;

int CurrentPage, TotalPages;
{
  CurrentPage = Grid->PageIndex;           // 0-based
  TotalPages  = Grid->PageCount;

  if (CurrentPage == 0) ShowMessage(L"First page");
  if (CurrentPage == TotalPages - 1) ShowMessage(L"Last page");
}

5. React to page changes

Inline example 6PascalC++
procedure TForm1.GridPageChanged(Sender: TObject;
  AOldPageIndex, ANewPageIndex: Integer);
begin
  Caption := Format('Viewing page %d of %d',
    [ANewPageIndex + 1, Grid.PageCount]);
end;

void __fastcall TForm1::GridPageChanged(TObject *Sender;
  AOldPageIndex, int ANewPageIndex)
{
  Caption = Format(L"Viewing page %d of %d",
    [ANewPageIndex + 1][Grid->PageCount]);
}
Event When it fires
OnPageChanged After the page has changed.
OnFooterPageSelectorChange The user picked a page from the dropdown.
OnFooterFirstPageClick First-page button clicked.
OnFooterPreviousPageClick Previous-page button clicked.
OnFooterNextPageClick Next-page button clicked.
OnFooterLastPageClick Last-page button clicked.

6. Customise the paging controls directly

The toolbar controls themselves are exposed for low-level tweaks:

Access the footer paging controls directlyPascalC++
procedure TForm1.CustomisePagingControls;
var
  PageSelector: TTMSFNCToolBarComboBox;
  FirstButton:  TTMSFNCToolBarButton;
begin
  PageSelector := Grid.FooterPageSelector;
  FirstButton  := Grid.FooterFirstPageButton;

  FirstButton.Enabled := Grid.PageIndex > 0;
end;

void __fastcall TForm1::CustomisePagingControls()
{
  TTMSFNCToolBarComboBox *PageSelector = Grid->FooterPageSelector;
  TTMSFNCToolBarButton *FirstButton    = Grid->FooterFirstPageButton;

  FirstButton->Enabled = Grid->PageIndex > 0;
}
Control Type
Grid.FooterPageSelector TTMSFNCToolBarComboBox
Grid.FooterPageInfo TTMSFNCHTMLText
Grid.FooterFirstPageButton TTMSFNCToolBarButton
Grid.FooterPreviousPageButton TTMSFNCToolBarButton
Grid.FooterNextPageButton TTMSFNCToolBarButton
Grid.FooterLastPageButton TTMSFNCToolBarButton

Page size

By default the page size auto-calculates to fit the visible area — resizing the grid changes the page size. To fix a stable page size, set Options.Keyboard.PageScrollSize:

Inline example 7PascalC++
Grid.Options.Keyboard.PageScrollSize := 50;       // 50 rows per page

Grid->Options->Keyboard->PageScrollSize = 50;       // 50 rows per page

When PageScrollSize is 0 (the default), the grid determines page size from the viewport height automatically.

Custom paging buttons

For a paging UX outside the grid (toolbar, breadcrumb), call the navigation methods from your own buttons. The paging controls in the footer don't have to be visible:

Inline example 8PascalC++
Grid.Footer.Paging.Visible := False;        // hide built-in controls

procedure TForm1.NextButtonClick(Sender: TObject);
begin
  if Grid.PageIndex < Grid.PageCount - 1 then
    Grid.NextPage;
end;

Grid->Footer->Paging->Visible = false;        // hide built-in controls

void __fastcall TForm1::NextButtonClick(TObject *Sender)
{
  if (Grid->PageIndex < Grid->PageCount - 1)
    Grid->NextPage;
}

Paging with database adapters

When paging is combined with LoadMode := almBuffered on the database adapter, the grid only fetches the visible page from the dataset — billion-row tables become workable. See Large datasets.

  • Grid.Paging — enable/disable
  • Grid.PageIndex, Grid.PageCount — current state
  • Grid.NextPage, PreviousPage, FirstPage, LastPage, GoToPage(n)
  • Grid.GoToFirstPage, GoToLastPage
  • Grid.Options.Keyboard.PageScrollSize — fixed rows per page (0 = auto from viewport)
  • Grid.Footer.Visible, Grid.Footer.Paging.Visible
  • Grid.Footer.Paging.ShowPageSelector / ShowPageInfo / ShowNavigationButtons
  • Grid.Footer.Paging.PageSelectorWidth / NavigationButtonWidth / PageInfoWidth
  • Grid.Footer.Paging.PageInfoFormat — 'Page %d of %d' (current, total); default is 'Page %d of %d'
  • Grid.Footer.Paging.PageSelectorFormat — 'Page %d' (page number); default is 'Page %d'
  • Grid.FooterPageSelector, FooterPageInfo, FooterFirstPageButton, FooterPreviousPageButton, FooterNextPageButton, FooterLastPageButton
  • OnPageChanged, OnFooterPageSelectorChange, OnFooterFirstPageClick, OnFooterPreviousPageClick, OnFooterNextPageClick, OnFooterLastPageClick
