Data, formatting & conversion

How the grid stores cell values, how OnGetCellFormatting lets you display them differently from how they're stored, and how to convert between cell values and Delphi types.

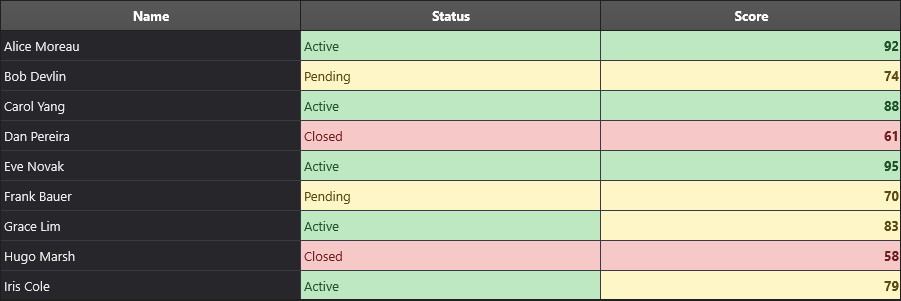

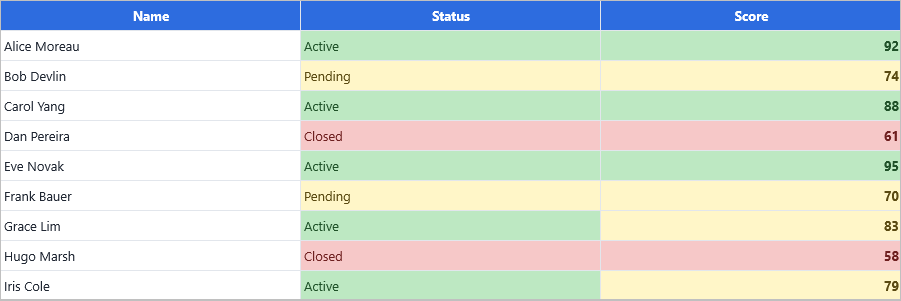

DataGrid cells with typed values and formatting DataGrid cells with typed values and formatting

Cells store TValue

Every cell holds a Delphi TValue — the same variant-like type used by RTTI. That means Grid.Cells[col, row] accepts any Delphi value:

Inline example 1PascalC++
Grid.Cells[0, 1] := 1;                  // Integer
Grid.Cells[1, 1] := 'John Doe';         // string
Grid.Cells[2, 1] := True;               // Boolean
Grid.Cells[3, 1] := Now;                // TDateTime
Grid.Cells[4, 1] := 1.23456789;         // Double
Grid->Cells[0][1] = 1;                  // Integer
Grid->Cells[1][1] = L"John Doe";         // string
Grid->Cells[2][1] = true;               // Boolean
Grid->Cells[3][1] = Now;                // TDateTime
Grid->Cells[4][1] = 1.23456789;         // Double

Typed setters/getters are slightly faster and more readable:

Inline example 2PascalC++
Grid.Ints[0, 1]     := 42;
Grid.Floats[1, 1]   := 3.14;
Grid.Booleans[2, 1] := True;
Grid->Ints[0][1]     = 42;
Grid->Floats[1][1]   = 3.14;
Grid->Booleans[2][1] = true;

Display formatting per column

Grid.Columns[i].Formatting controls how stored values are rendered for that column. Set Type and an optional format string, and call AddSetting(gcsFormatting) so the column owns its formatting:

Per-column display formattingPascalC++
procedure TForm1.ConfigureColumnFormatting;
begin
  Grid.Columns[0].Formatting.&Type  := gdftNumber;
  Grid.Columns[0].Formatting.Format := '%.2f';
  Grid.Columns[0].AddSetting(gcsFormatting);

  Grid.Columns[1].Formatting.&Type := gdftDateTime;
  Grid.Columns[1].AddSetting(gcsFormatting);
end;
void __fastcall TForm1::ConfigureColumnFormatting()
{
  Grid->Columns->Items[0]->Formatting->Type   = gdftNumber;
  Grid->Columns->Items[0]->Formatting->Format = "%.2f";
  Grid->Columns->Items[0]->AddSetting(gcsFormatting);

  Grid->Columns->Items[1]->Formatting->Type = gdftDateTime;
  Grid->Columns->Items[1]->AddSetting(gcsFormatting);
}

Available format types (TTMSFNCDataGridDataFormattingType):

Type Renders as
gdftDefault No conversion applied — the raw string value is used as-is (default).
gdftNumber Integer with thousand separators.
gdftFloat Floating-point with Format applied.
gdftDate / gdftTime / gdftDateTime Date/time using Format and locale settings.
gdftBoolean True/false text (configurable via BooleanTrueText / BooleanFalseText).

Per-cell formatting via OnGetCellFormatting

For dynamic per-row formatting (e.g. dates from a string column, custom currency symbol per row, condition-based displays), hook OnGetCellFormatting. The event fires for every cell on every paint:

Per-cell formatting via OnGetCellFormattingPascalC++
procedure TForm1.GridGetCellFormatting(Sender: TObject;
  ACell: TTMSFNCDataGridCellCoord;
  AData: TTMSFNCDataGridCellValue;
  var AFormatting: TTMSFNCDataGridDataFormatting;
  var AConvertSettings: TFormatSettings;
  var ACanFormat: Boolean);
begin
  if ACell.Row = 0 then        // skip header row
    Exit;

  ACanFormat := True;

  case ACell.Column of
    1: begin                   // dates as yyyy/mm/dd
         AFormatting.&Type := gdftDate;
         AFormatting.Format := 'yyyy/mm/dd';
         AConvertSettings.DateSeparator := '/';
       end;

    2: begin                   // booleans as Approved/Pending
         AFormatting.&Type := gdftBoolean;
         AFormatting.BooleanTrueText  := 'Approved';
         AFormatting.BooleanFalseText := 'Pending';
       end;

    4: begin                   // currency
         AFormatting.&Type   := gdftFloat;
         AFormatting.Format  := '#,##0.00';
         AConvertSettings.CurrencyString    := '$';
         AConvertSettings.DecimalSeparator  := '.';
         AConvertSettings.ThousandSeparator := ',';
       end;
  end;
end;
void __fastcall TForm1::GridGetCellFormatting(TObject *Sender,
  const TTMSFNCDataGridCellCoord &ACell,
  const TTMSFNCDataGridCellValue &AData,
  TTMSFNCDataGridDataFormatting &AFormatting,
  System::Sysutils::TFormatSettings &AConvertSettings,
  bool &ACanFormat)
{
  TTMSFNCDataGridCellCoord Cell = ACell;  // ACell is const; its getters are not
  if (Cell.Row == 0)        // skip header row
    return;

  ACanFormat = true;

  switch (Cell.Column)
  {
    case 1:                  // dates as yyyy/mm/dd
      AFormatting.Type = gdftDate;
      AFormatting.Format = "yyyy/mm/dd";
      AConvertSettings.DateSeparator = L'/';
      break;

    case 2:                  // booleans as Approved/Pending
      AFormatting.Type = gdftBoolean;
      AFormatting.BooleanTrueText  = "Approved";
      AFormatting.BooleanFalseText = "Pending";
      break;

    case 4:                  // currency
      AFormatting.Type   = gdftFloat;
      AFormatting.Format = "#,##0.00";
      AConvertSettings.CurrencyString    = "$";
      AConvertSettings.DecimalSeparator  = L'.';
      AConvertSettings.ThousandSeparator = L',';
      break;
  }
}
Parameter What it carries
ACell The cell being formatted (Col, Row).
AData The actual stored value as TTMSFNCDataGridCellValue.
AFormatting The formatting record — set its Type, Format, BooleanTrueText, BooleanFalseText.
AConvertSettings A TFormatSettings record. Adjust to control date separator, currency symbol, etc.
ACanFormat Set True to enable formatting; defaults False for fixed cells.

Overriding the rendered text: OnGetCellDisplayValue

DataGrid cells with typed values and formatting DataGrid cells with typed values and formatting

OnGetCellFormatting controls how a stored value is formatted. OnGetCellDisplayValue goes one step further: it lets you replace the entire rendered string without changing what is stored in the cell.

This is useful when:

  • You need to combine values from multiple columns into one rendered cell.
  • You want to inject HTML markup into cells without storing HTML in the data layer.
  • You store a code internally ('M') but want to display a label ('Male').
Overriding rendered text with OnGetCellDisplayValuePascalC++
procedure TForm1.GridGetCellDisplayValue(Sender: TObject;
  ACell: TTMSFNCDataGridCellCoord;
  AData: TTMSFNCDataGridCellValue;
  var AValue: string);
begin
  if ACell.Row <= 0 then Exit;      // skip header row

  case ACell.Column of
    0: begin
         // Combine first-name (col 0) and last-name (col 1) into one cell
         AValue := Grid.Strings[0, ACell.Row]
                 + ' ' + Grid.Strings[1, ACell.Row];
       end;
    2: begin
         // Render a stored status code as a descriptive label
         if AData.AsString = 'O' then AValue := 'Open'
         else if AData.AsString = 'C' then AValue := 'Closed'
         else AValue := AData.AsString;
       end;
    3: begin
         // Inject bold HTML without storing HTML
         AValue := '<b>' + FormatDateTime('dd-mmm-yyyy',
                   Grid.Floats[ACell.Column, ACell.Row]) + '</b>';
       end;
  end;
end;
void __fastcall TForm1::GridGetCellDisplayValue(TObject *Sender,
  const TTMSFNCDataGridCellCoord &ACell,
  const TTMSFNCDataGridCellValue &AData,
  System::UnicodeString &AValue)
{
  TTMSFNCDataGridCellCoord Cell = ACell;  // ACell is const; its getters are not
  if (Cell.Row <= 0)
    return;      // skip header row

  switch (Cell.Column)
  {
    case 0:
      // Combine first-name (col 0) and last-name (col 1) into one cell
      AValue = Grid->Strings[0][Cell.Row] + " " + Grid->Strings[1][Cell.Row];
      break;
    case 2:
      // Render a stored status code as a descriptive label
      if (TValue(AData).ToString() == "O")
        AValue = "Open";
      else if (TValue(AData).ToString() == "C")
        AValue = "Closed";
      else
        AValue = TValue(AData).ToString();
      break;
    case 3:
      // Inject bold HTML without storing HTML
      AValue = "<b>" + FormatDateTime("dd-mmm-yyyy",
               Grid->Floats[Cell.Column][Cell.Row]) + "</b>";
      break;
  }
}

The override is display-only. The stored value, sorting behaviour, filter evaluation, and what the editor receives are all based on the original AData, not the overridden string. Set Grid.OnGetCellDisplayValue := GridGetCellDisplayValue to wire the event.

For adapter-connected grids, see the same event discussed in the data-binding guide.

Reading cell values back

To read a cell value back from the grid, fetch it as TValue and use the appropriate accessor:

Inline example 3PascalC++
var V: TValue;
V := Grid.Cells[1, 1];

if V.IsType<Integer> then
  Showmessage(IntToStr(V.AsInteger));

ShowMessage(V.ToString);    // works for any kind
System::TValue V;
V = Grid->Cells[1][1];

if (V.IsType<int>())
  ShowMessage(System::Sysutils::IntToStr(V.AsInteger()));

ShowMessage(V.ToString());    // works for any kind

Typed getters skip the TValue machinery:

Inline example 4PascalC++
var I := Grid.Ints[0, 1];
var F := Grid.Floats[1, 1];
var S := Grid.Strings[2, 1];
var I = Grid->Ints[0][1];
var F = Grid->Floats[1][1];
var S = Grid->Strings[2][1];

Type-checking and converting cell values

When writing rendering or calculation code that works with TTMSFNCDataGridCellValue directly — especially in OnGetCellLayout, custom cell classes, or the headless data layer — the TTMSFNCDataGridData class provides a family of class methods for safe type-checking and conversion without touching RTTI directly:

Type-check methods (return Boolean):

Method Returns True when…
ValueIsBoolean(V) The value is a Boolean.
ValueIsFloat(V) The value is a floating-point number.
ValueIsInteger(V) The value is an integer.
ValueIsDateTime(V) The value is a TDateTime.
ValueIsString(V) The value is a string.

Conversion methods (return the typed value, or a sensible default on mismatch):

Method Returns
ValueToBoolean(V) Boolean — parses strings 'true'/'false' too.
ValueToFloat(V) Double.
ValueToFloat(V, FmtSettings) Double, using the supplied locale for decimal separator.
ValueToInt64(V) Int64.
ValueToInteger(V) Integer.
ValueToString(V) String representation.
ValueToDateTime(V) TDateTime.
Type-checking and converting a cell valuePascalC++
procedure TForm1.TintNegativeAmount(ARow: Integer; ALayout: TTMSFNCDataGridCellLayout);
var
  V: TTMSFNCDataGridCellValue;
  Amount: Double;
begin
  // In a custom column calculation or cell drawing handler:
  V := Grid.Cells[AmountCol, ARow];
  if TTMSFNCDataGridData.ValueIsFloat(V) then
  begin
    Amount := TTMSFNCDataGridData.ValueToFloat(V);
    if Amount < 0 then
      ALayout.Fill.Color := gcLightCoral;
  end;
end;
void __fastcall TForm1::TintNegativeAmount(int ARow, TTMSFNCDataGridCellLayout *ALayout)
{
  // In a custom column calculation or cell drawing handler:
  TTMSFNCDataGridCellValue V = Grid->Cells[AmountCol][ARow];
  if (TTMSFNCDataGridData::ValueIsFloat(V))
  {
    double Amount = TTMSFNCDataGridData::ValueToFloat(V);
    if (Amount < 0)
      ALayout->Fill->Color = gcLightcoral;
  }
}

All methods are class function — call them on the class name, not on an instance.

Parsing strings as dates

A common case: data comes in as strings ('31-12-2023'), but you want the grid to treat it as a date for sorting and display. Set AConvertSettings to interpret the input format, and AFormatting to display the output format:

Parsing string dates in OnGetCellFormattingPascalC++
procedure TForm1.GridGetCellFormatting(Sender: TObject;
  ACell: TTMSFNCDataGridCellCoord;
  AData: TTMSFNCDataGridCellValue;
  var AFormatting: TTMSFNCDataGridDataFormatting;
  var AConvertSettings: TFormatSettings;
  var ACanFormat: Boolean);
begin
  if ACell.Column = 1 then
  begin
    AConvertSettings.ShortDateFormat := 'dd-mm-yyyy';   // input format
    AConvertSettings.DateSeparator   := '-';

    AFormatting.&Type  := gdftDate;
    AFormatting.Format := 'yyyy/mm/dd';                 // display format
    ACanFormat := True;
  end;
end;
void __fastcall TForm1::GridGetCellFormatting(TObject *Sender,
  const TTMSFNCDataGridCellCoord &ACell,
  const TTMSFNCDataGridCellValue &AData,
  TTMSFNCDataGridDataFormatting &AFormatting,
  System::Sysutils::TFormatSettings &AConvertSettings,
  bool &ACanFormat)
{
  TTMSFNCDataGridCellCoord Cell = ACell;  // ACell is const; its getters are not
  if (Cell.Column == 1)
  {
    AConvertSettings.ShortDateFormat = "dd-mm-yyyy";   // input format
    AConvertSettings.DateSeparator   = L'-';

    AFormatting.Type   = gdftDate;
    AFormatting.Format = "yyyy/mm/dd";                 // display format
    ACanFormat = true;
  }
}

Storage vs display

Two principles:

  • Storage drives sorting and filtering. Sorting a column with Formatting.Type := gdftFloat orders by numeric value, even if the display format hides decimals.
  • Display drives the user experience. Two cells with the same stored value can render differently based on their column, format, or OnGetCellFormatting logic.

Keep numeric and date data in their native types whenever possible — the conversion-from-string path is slower and brittle.

Attaching application data to cells: Objects and ManagedObjects

Every cell can carry an arbitrary TObject reference alongside its display value. Two properties provide this:

Property Ownership Use it for
Grid.Objects[col, row]: TObject You keep ownership — the grid never frees it. Pointer back to a domain record or list item.
Grid.ManagedObjects[col, row]: TObject Grid owns it — freed when the cell is cleared or the grid is destroyed. Temporary helper objects that should live exactly as long as the cell.
Inline example 5PascalC++
// Tag a row with a record pointer (not owned by grid)
Grid.Objects[0, 3] := MyRecordList[3];

// Retrieve it in an event
procedure TForm1.GridCellClick(Sender: TObject; AColumn, ARow: Integer);
var R: TMyRecord;
begin
  R := TMyRecord(Grid.Objects[0, ARow]);
  if R <> nil then
    ShowMessage(R.Description);
end;
// Tag a row with a record pointer (!owned by grid)
Grid->Objects[0][3] = MyRecordList[3];

// Retrieve it in an event
void __fastcall TForm1::GridCellClick(TObject *Sender, int AColumn, int ARow)
{
  TMyRecord *R = static_cast<TMyRecord *>(Grid->Objects[0][ARow]);
  if (R != nullptr)
    ShowMessage(R->Description);
}

Objects[] stores a plain pointer cast; the grid does no type-checking. Always check for nil before dereferencing.

Typed application-data slots on extended cell items

Objects[] and ManagedObjects[] carry an untyped TObject. When you need tightly-typed per-cell storage without boxing through a class, the extended cell item exposes five typed slots:

Property Type Notes
DataBoolean Boolean Any boolean flag (e.g. "row is dirty").
DataInteger NativeInt Any integer tag (e.g. a database record ID).
DataString string Any short string (e.g. a key or label).
DataObject TObject Object pointer, not owned — same semantics as Objects[].
DataPointer Pointer Raw pointer for interop.

All five are application-use slots — the grid never reads or writes them during normal operation.

Inline example 6PascalC++
// Store a record ID on column 0 of each row without boxing it in a TObject
for var R := Grid.FixedRowCount to Grid.RowCount - 1 do
begin
  var Item := Grid.CellData[0, R].AsExtended;
  if Assigned(Item) then
    Item.DataInteger := MyRecords[R - Grid.FixedRowCount].ID;
end;

// Retrieve in an event
procedure TForm1.GridCellClick(Sender: TObject; AColumn, ARow: Integer);
var Item := Grid.CellData[0, ARow].AsExtended;
begin
  if Assigned(Item) then
    EditRecord(Item.DataInteger);
end;
// Store a record ID on column 0 of each row without boxing it in a TObject
for var R = Grid->FixedRowCount to Grid->RowCount - 1 do
{
  var Item = Grid->CellData[0][R].AsExtended;
  if (Assigned(Item))
    Item->DataInteger = MyRecords[R - Grid->FixedRowCount].ID;
}

// Retrieve in an event
void __fastcall TForm1::GridCellClick(TObject *Sender; AColumn, int ARow)
var Item = Grid->CellData[0][ARow].AsExtended;
{
  if (Assigned(Item))
    EditRecord(Item->DataInteger);
}

CellData[col, row] returns nil for empty cells. AsExtended returns nil if the cell item is not an extended instance. Always check for nil.

Accessing stored vs displayed cell content

Property What it returns
Grid.Cells[col, row] The raw TValue stored in the cell — the source of truth for sorting, filtering, and editing.
Grid.Strings[col, row] String representation of Cells[], formatted if a column format is set.
Grid.StoredCells[col, row] The value exactly as it was last committed (before any in-flight edit). Useful when you need to compare the current stored value against what was there before an edit started.
Grid.StrippedCells[col, row] The cell text with all HTML tags removed. Use this when you need to export or search the plain text of a cell that may contain HTML markup.
Inline example 7PascalC++
// Safe plain-text export from a column that may contain HTML
for var R := Grid.FixedRowCount to Grid.RowCount - 1 do
  Lines.Add(Grid.StrippedCells[0, R]);

// Compare stored vs currently edited value
if Grid.StoredCells[AColumn, ARow] <> Grid.Cells[AColumn, ARow] then
  MarkAsModified(ARow);
// Safe plain-text export from a column that may contain HTML
for var R = Grid->FixedRowCount to Grid->RowCount - 1 do
  Lines->Add(Grid->StrippedCells[0][R]);

// Compare stored vs currently edited value
if (Grid->StoredCells[AColumn][ARow] <> Grid->Cells[AColumn][ARow])
  MarkAsModified(ARow);

Clearing cell data

Three methods erase stored values with different scope:

Method What it clears
Grid.ClearData All cell values in the entire grid — fast single call. Row/column count, widths, heights, and layouts are preserved.
Grid.ClearCells(Range) Values in a specific rectangular cell range only. Pass a TTMSFNCDataGridCellCoordRange built with MakeCellRange(col1, row1, col2, row2).
Grid.ClearDataForColumn(col) All values in a single column. Pass AllRowTypes (the default) to include group and summary rows too.
Grid.ClearDataForRow(row) All values in a single row. Same AllRowTypes parameter.
Inline example 8PascalC++
// Erase everything and reload
Grid.ClearData;
Grid.LoadFromCSVData('fresh.csv');

// Erase a rectangular block (columns 2–4, rows 5–9)
Grid.ClearCells(MakeCellRange(2, 5, 4, 9));

// Erase one column before re-populating it
Grid.ClearDataForColumn(3);
for var R := Grid.FixedRowCount to Grid.RowCount - 1 do
  Grid.Cells[3, R] := ComputeValue(R);
// Erase everything and reload
Grid->ClearData;
Grid->LoadFromCSVData(L"fresh->csv");

// Erase a rectangular block (columns 2–4, rows 5–9)
Grid->ClearCells(MakeCellRange(2, 5, 4, 9));

// Erase one column before re-populating it
Grid->ClearDataForColumn(3);
for var R = Grid->FixedRowCount to Grid->RowCount - 1 do
  Grid->Cells[3][R] = ComputeValue(R);

ClearData only removes values from the internal dictionary — it does not reset RowCount, ColumnCount, RowHeights, or ColumnWidths. To reset the full grid structure, set RowCount and ColumnCount after calling ClearData.

Combining typed storage, formatting and display overrides

Storage, formatting and display are three separate steps, and most real columns use more than one of them. A column that holds a numeric amount wants a number format, while a status code stored as O or C wants a friendlier label at paint time, and your code still has to read the original value back. Use this combination when you need the stored data to stay clean for sorting, filtering and export while the user sees formatted text. The example stores typed values, formats a column through Formatting, overrides one display value in OnGetCellDisplayValue, and reads the amount back through a type check instead of parsing the displayed text.

Typed storage, column formatting and a display overridePascalC++
procedure TForm1.SetupFormattedColumns;
begin
  // Cells store typed values; display formatting is separate.
  Grid.Cells[0, 1] := 1234.5;
  Grid.Cells[1, 1] := 'O';

  // Per-column display formatting.
  Grid.Columns[0].Formatting.&Type := gdftNumber;
  Grid.Columns[0].Formatting.Format := '%.2f';
  Grid.Columns[0].AddSetting(gcsFormatting);

  // Render the stored status code as a label without changing the stored value.
  Grid.OnGetCellDisplayValue := GridGetCellDisplayValue;
end;

procedure TForm1.GridGetCellDisplayValue(Sender: TObject;
  ACell: TTMSFNCDataGridCellCoord; AData: TTMSFNCDataGridCellValue;
  var AValue: string);
begin
  if (ACell.Column = 1) and (ACell.Row > 0) then
  begin
    if AData.AsString = 'O' then
      AValue := 'Open'
    else if AData.AsString = 'C' then
      AValue := 'Closed';
  end;
end;

function TForm1.StoredAmount(ARow: Integer): Double;
var
  V: TTMSFNCDataGridCellValue;
begin
  // Reading goes to the stored value, never to the formatted display text.
  V := Grid.Cells[0, ARow];
  if TTMSFNCDataGridData.ValueIsFloat(V) then
    Result := TTMSFNCDataGridData.ValueToFloat(V)
  else
    Result := 0;
end;
void __fastcall TForm1::SetupFormattedColumns()
{
  // Cells store typed values; display formatting is separate.
  Grid->Floats[0][1] = 1234.5;
  Grid->Strings[1][1] = "O";

  // Per-column display formatting.
  Grid->Columns->Items[0]->Formatting->Type = gdftNumber;
  Grid->Columns->Items[0]->Formatting->Format = "%.2f";
  Grid->Columns->Items[0]->AddSetting(gcsFormatting);

  // Render the stored status code as a label without changing the stored value.
  Grid->OnGetCellDisplayValue = GridGetCellDisplayValue;
}

void __fastcall TForm1::GridGetCellDisplayValue(TObject *Sender,
  const TTMSFNCDataGridCellCoord &ACell,
  const TTMSFNCDataGridCellValue &AData,
  System::UnicodeString &AValue)
{
  TTMSFNCDataGridCellCoord Cell = ACell;
  if ((Cell.Column == 1) && (Cell.Row > 0))
  {
    if (TValue(AData).ToString() == "O")
      AValue = "Open";
    else if (TValue(AData).ToString() == "C")
      AValue = "Closed";
  }
}

double __fastcall TForm1::StoredAmount(int ARow)
{
  // Reading goes to the stored value, never to the formatted display text.
  TTMSFNCDataGridCellValue V = Grid->Cells[0][ARow];
  if (TTMSFNCDataGridData::ValueIsFloat(V))
    return TTMSFNCDataGridData::ValueToFloat(V);
  return 0;
}

See also

  • Editing cells — inplace editors and how they interact with formatting.
  • Sorting — how the data layer compares typed values.
  • Layout priority — formatting is independent of appearance, but they interact.
  • Tree mode — using Objects[] to tag tree rows for lazy loading.
  • Data binding — OnGetCellDisplayValue in adapter-connected grids.
